A ResNet (“residual network”) neural network uses a very complex architecture for image classification. I don’t work with image data very much so I’m not too familiar with ResNet. But because ResNet architecture networks give state of the art results, I figured I should explore and make sure I have a reasonable understanding of ResNet.

I found an excellent example buried in the PyTorch documentation at pytorch-tutorial.readthedocs.io/en/latest/tutorial/chapter03_intermediate/3_2_2_cnn_resnet_cifar10/. That example is based on a different example in the documentation.

I only trained the demo for 3 epochs. Using 80 epochs, the trained model scores about 89% accuracy which is quite good for the CIFAR-10 dataset.

It’s no secret that the best way to learn about any computer science topic is to get a demo up and running, and then make changes to the demo to see the effect of each change. So I did that.

The demo trains a model to classify the CIFAR-10 image dataset. There are 50,000 training images and 10,000 test images. Each image is 32 x 32 pixels. Because the images are in color, there are three channels (red, green, blue). Each channel-pixel value is an integer between 0 and 255. Therefore, each image is represented by 32 * 32 * 3 = 3,072 values between 0 and 255. There are 10 classes: plane (class 0), car, bird, cat, deer, dog, frog, horse, ship, truck (class 9).

I used the built-in CIFAR-10 dataset from the TorchVision library. This is kind of a cheat. In a non-demo scenario I’d fetch raw CIFAR-10 data from a text file. See https://jamesmccaffreyblog.com/2022/03/10/fetching-cifar-10-data-and-saving-as-a-text-file/.

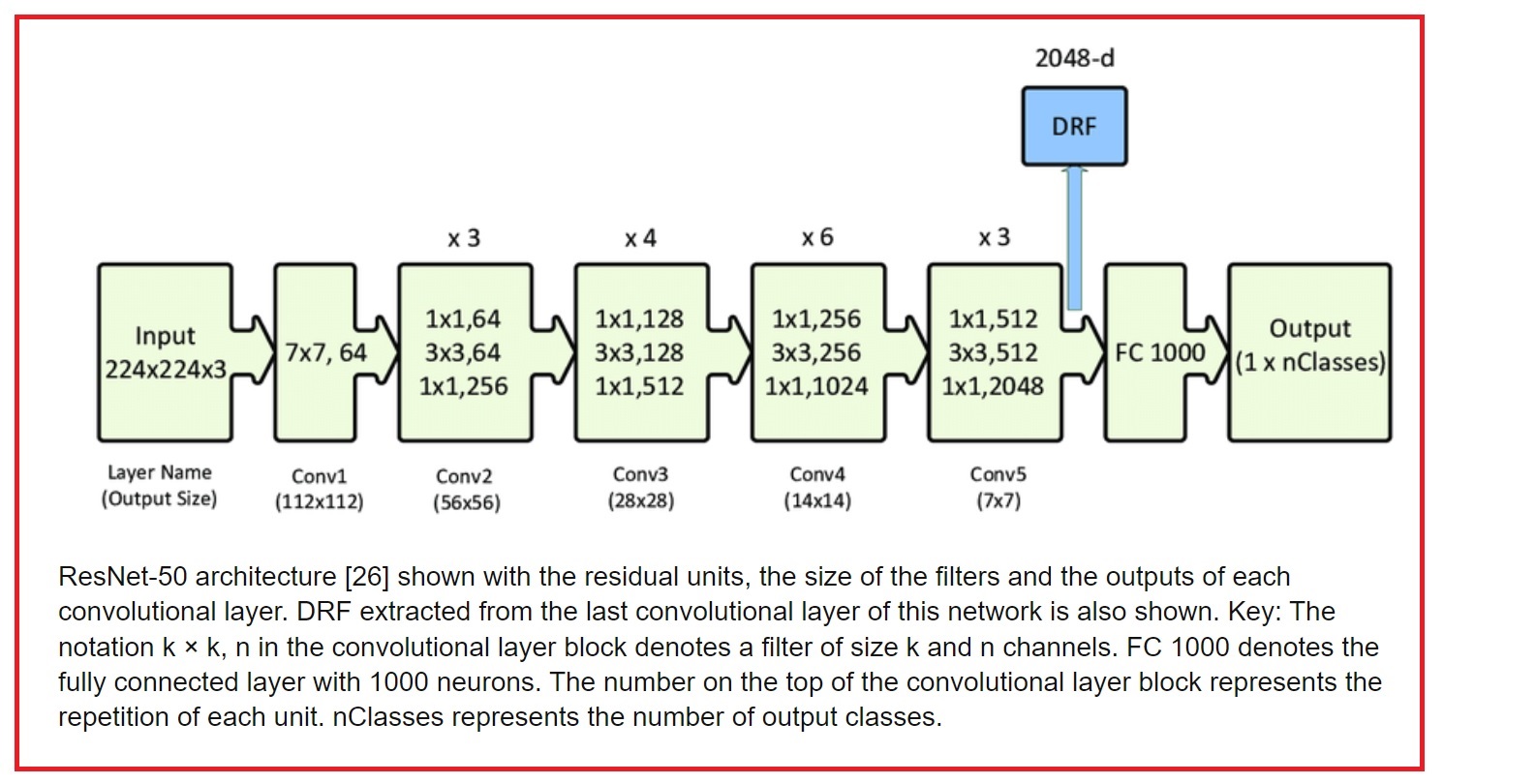

The demo implements a toy ResNet in the sense that the network/model is a small scaled-down version that has only 3 convolution layers. Perhaps the most commonly used version of ResNet is called ResNet-50 because it has 50 layers. Here’s a diagram of ResNet-50 I found for an input color image of size 224 x 224.

My primary impression is that ResNet architecture networks are extremely complex. There is still quite a bit that I don’t fully understand, especially about how one layer is projected to the next. But, as they say, every journey begins with a single step. My second impression is a vague feeling of unease, in the sense that ResNet networks have so many design alternatives and hyperparameters that it’s impossible to explore even a tiny fraction of the alternatives.

But my third impression was that ResNet systems, like all neural networks, are incredibly fascinating.

Three results from an Internet image search for “projection image”. I think images like these would be very difficult for a ResNet system to deal with.

Demo code:

# cifar_resnet.py

# PyTorch 1.10.0-CPU Anaconda3-2020.02  Python 3.7.6
# Windows 10/11

# a refactor of:
# pytorch-tutorial.readthedocs.io/en/latest/tutorial/
#   chapter03_intermediate/3_2_2_cnn_resnet_cifar10/
# which is a refactor of:
# github.com/pytorch/vision/blob/master/torchvision/
#   models/resnet.py
# which implements:
# https://arxiv.org/pdf/1512.03385.pdf

import numpy as np
import torch as T
import torchvision as tv
import torchvision.transforms as transforms

device = T.device('cpu')

# -----------------------------------------------------------

# 3x3 kernel convolution with no bias
def conv3x3(in_channels, out_channels, stride=1):
  return T.nn.Conv2d(in_channels, out_channels, \
    kernel_size=3, stride=stride, padding=1, bias=False)

# -----------------------------------------------------------

class ResidualBlock(T.nn.Module):
  def __init__(self, in_channels, out_channels, stride=1,
    downsample=None):
    super(ResidualBlock, self).__init__()
    self.conv1 = conv3x3(in_channels, out_channels, stride)
    self.bn1 = T.nn.BatchNorm2d(out_channels)
    # self.relu = T.nn.ReLU(inplace=True)  # huh?
    self.conv2 = conv3x3(out_channels, out_channels)
    self.bn2 = T.nn.BatchNorm2d(out_channels)
    self.downsample = downsample

  def forward(self, x):
    residual = x
    z = self.conv1(x)
    z = self.bn1(z)
    z = T.nn.functional.relu(z)
    z = self.conv2(z)
    z = self.bn2(z)
    if self.downsample:
      residual = self.downsample(x)
    z += residual
    z = T.nn.functional.relu(z)
    return z

# -----------------------------------------------------------

class ResNet(T.nn.Module):
  def __init__(self, block, layers, num_classes=10):
    super(ResNet, self).__init__()
    self.in_channels = 16
    self.conv = conv3x3(3, 16)
    self.bn = T.nn.BatchNorm2d(16)
    self.layer1 = self.make_layer(block, 16, layers[0])
    self.layer2 = self.make_layer(block, 32, layers[1], 2)
    self.layer3 = self.make_layer(block, 64, layers[2], 2)
    self.avg_pool = T.nn.AvgPool2d(8)
    self.fc = T.nn.Linear(64, num_classes)

  def make_layer(self, block, out_channels, blocks, stride=1):
    downsample = None
    if (stride != 1) or (self.in_channels != out_channels):
      downsample = \
        T.nn.Sequential(
          conv3x3(self.in_channels, out_channels, stride=stride),
            T.nn.BatchNorm2d(out_channels))
    layers = []
    layers.append(block(self.in_channels, out_channels,
      stride, downsample))
    self.in_channels = out_channels
    for i in range(1, blocks):
      layers.append(block(out_channels, out_channels))
    return T.nn.Sequential(*layers)

  def forward(self, x):
    z = self.conv(x)
    z = self.bn(z)
    z = T.nn.functional.relu(z)
    z = self.layer1(z)
    z = self.layer2(z)
    z = self.layer3(z)
    z = self.avg_pool(z)
    z = z.view(z.size(0), -1)
    z = self.fc(z)
    return z

# -----------------------------------------------------------

def accuracy(model, data_ldr):
  model.eval()
  n_correct = 0; n_total = 0
  for images, labels in data_ldr:
    images = images.to(device)
    labels = labels.to(device)
    with T.no_grad():
      outputs = model(images)
    _, predicted = T.max(outputs.data, 1)
    n_total += labels.size(0)
    n_correct += (predicted == labels).sum().item()
  model.train()
  return (n_correct * 1.0) / n_total

# -----------------------------------------------------------

def update_lr(optimizer, lr):
  for param_group in optimizer.param_groups:
    param_group['lr'] = lr

# -----------------------------------------------------------

def main():
  # 0. get ready
  print("\nBegin CIFAR-10 ResNet demo ")
  np.random.seed(1)
  T.manual_seed(1)

  # 1. get train and test data
  print("\nFetching torchvision CIFAR-10 train and test data ")
  transform_set = transforms.Compose([
    transforms.Pad(4),
    transforms.RandomHorizontalFlip(),
    transforms.RandomCrop(32),
    transforms.ToTensor()])

  train_ds = tv.datasets.CIFAR10(root=".\\cifar_tv_data\\",
    train=True, transform=transform_set, download=True)
  test_ds = tv.datasets.CIFAR10(root=".\\cifar_tv_data\\",
    train=False, transform=transforms.ToTensor())

  train_ldr = T.utils.data.DataLoader(dataset=train_ds,
    batch_size=100, shuffle=True)
  test_ldr = T.utils.data.DataLoader(dataset=test_ds,
    batch_size=100, shuffle=False)

  # 2. create model
  print("\nCreating ResNet model ")
  model = ResNet(ResidualBlock, [2, 2, 2]).to(device)

# -----------------------------------------------------------

  # 3. train model
  print("\nStarting training ")
  num_epochs = 3  # need about 80 epochs for a good result
  lrn_rate = 0.001
  loss_func = T.nn.CrossEntropyLoss()
  optimizer = T.optim.Adam(model.parameters(), lr=lrn_rate)
  num_batches = len(train_ldr)  # 50_000/100 = 500
  curr_lr = lrn_rate

  for epoch in range(num_epochs):
    for bix, (images, labels) in enumerate(train_ldr):
      images = images.to(device)
      labels = labels.to(device)

      oupts = model(images)
      loss_val = loss_func(oupts, labels)
      optimizer.zero_grad()
      loss_val.backward()
      optimizer.step()

      if (bix+1) % 100 == 0:  # 100 batches = 10,000 images
        acc_train = accuracy(model, train_ldr)
        print("epoch [%2d / %2d]  |  " % \
          (epoch+1, num_epochs), end="")
        print("batch [%2d / %2d]  |  " % \
          (bix+1, num_batches), end="")
        print("loss = %0.4f  |  " % loss_val.item(), end="")
        print("acc = %0.4f " % acc_train)

    # decay learning rate every 20 epochs
    if (epoch+1) % 20 == 0:
      curr_lr /= 3.0
      update_lr(optimizer, curr_lr)
  print("Done ")

  # 4. evaluate model
  print("\nComputing model accuracy ")
  acc_test = accuracy(model, test_ldr)
  print("Accuracy on test data = %0.4f" % acc_test)

  # 5. TODO: save model
  # 6. TODO: use model to make prediction

  print("\nEnd CIFAR-10 ResNet demo ")

if __name__ == "__main__":
  main()
