As is often the case with interesting topics, explaining what the problem is, takes longer than explaining the solution. So bear with me.

The goal of a machine learning regression problem is to predict a single numeric value. For example, a bank might want to predict a maximum loan amount based on applicant age, sex, annual income, debt, and so on.

Common regression techniques include linear regression, quadratic regression, nearest neighbors regression, kernel ridge regression, Gaussian process regression, kernel support vector regression, neural network regression, random forest regression, and gradient boost regression. Each technique has dozens of variations, and each technique has pros and cons.

Two closely related machine learning regression techniques are kernel ridge regression (KRR) and support vector regression (SVR). Both techniques use a kernel function (usually the radial basis function, RBF) to compare two data items for similarity. Both techniques must store training data in order to make predictions, but KRR must store all training items, while SVR eliminates some of the items during training, leaving just the “support vectors” that need to be stored.

Note: In addition to the kernel support vector regression technique discussed in this blog post, there is a linear support vector regression technique which is essentially useless in practice.

KRR often gives slightly better prediction accuracy than SVR, is easier to train than SVR, can handle very large datasets via SGD training, and is much, much easier to implement than SVR.

One morning before work, I got the idea of combining KRR and SVR. Briefly, I train a KRR model as normal using all data. Then I identify training data items that are predicted “too well” and remove them, leaving just pseudo support vectors. The somewhat counterintuitive SVR idea is that items that are predicted too well don’t help model accuracy very much. Then I retrain a new KRR model using only the reduced training data. This gives a trimmed/sparse KRR model that approximates an SVR model.

In my mind, this technique gives the advantages of KRR (ability to handle very large datasets) and the advantages of SVR (fewer stored model items and weights than KRR) . . . if the technique works. I implemented the idea using the scikit KernelRidge module and the idea seemed to work well.

Let me point out that the idea is fairly obvious so I’m reasonably sure other people have used the idea, but I could find no examples or discussion on the Internet.

So, I decided to continue my investigation by refactoring the scikit Python code to the C# language. The effort was non-trivial.

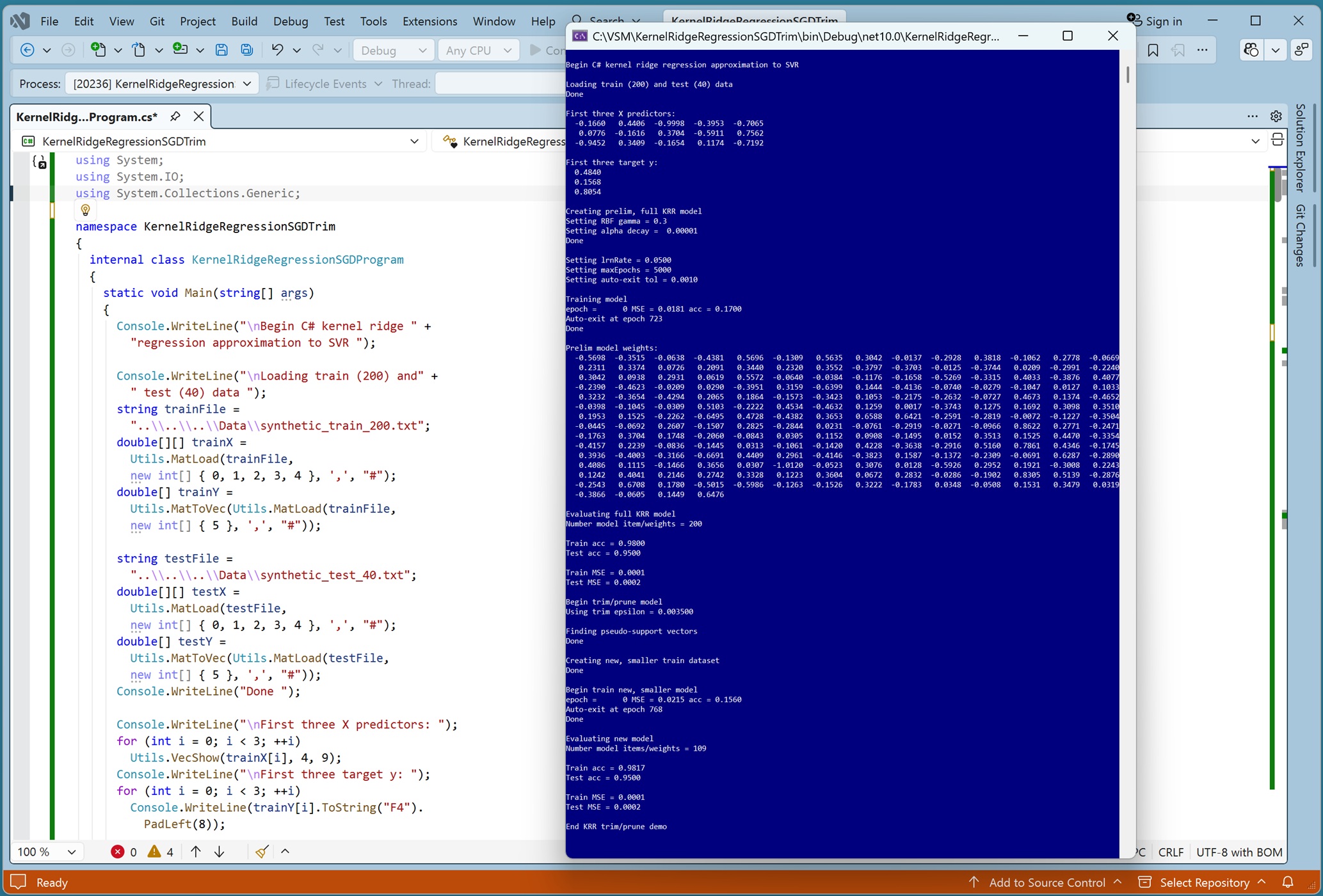

The output of the C# demo is:

Begin C# kernel ridge regression approximation to SVR

Loading train (200) and test (40) data
Done

First three X predictors:
  -0.1660   0.4406  -0.9998  -0.3953  -0.7065
   0.0776  -0.1616   0.3704  -0.5911   0.7562
  -0.9452   0.3409  -0.1654   0.1174  -0.7192

First three target y:
  0.4840
  0.1568
  0.8054

Creating prelim, full KRR model
Setting RBF gamma = 0.3
Setting alpha decay =  0.00001
Done

Setting lrnRate = 0.0500
Setting maxEpochs = 5000
Setting auto-exit tol = 0.0010

Training model
epoch =      0 MSE = 0.0181 acc = 0.1700
Auto-exit at epoch 723
Done

Prelim model weights:
 -0.5698  -0.3515  -0.0638  . . .
. . .
 -0.0605   0.1449   0.6476

Evaluating full KRR model
Number model item/weights = 200

Train acc = 0.9800
Test acc = 0.9500

Train MSE = 0.0001
Test MSE = 0.0002

Begin trim/prune model
Using trim epsilon = 0.003500

Finding pseudo-support vectors
Done

Creating new, smaller train dataset
Done

Begin train new, smaller model
epoch =      0 MSE = 0.0215 acc = 0.1560
Auto-exit at epoch 768
Done

Evaluating new model
Number model items/weights = 109

Train acc = 0.9817
Test acc = 0.9500

Train MSE = 0.0001
Test MSE = 0.0002

End KRR trim/prune demo

The demo data is synthetic demo. There are 200 training items and 40 test items.

After training on 200 data items, those items that were predicted with a small error of less than 0.0035 were removed. There were 91 such well-predicted items, leaving a reduced training dataset of 109 items. After training a new model on the reduced dataset, the sparse model scored 98.17% accuracy on the reduced training data (107 out of 109 correct) and 95.00% accuracy on the test data (38 out of 40 correct).

To validate my C# trimmed KRR approximation to SVR, I ran the data through the scikit SVR module. A grid-search optimized scikit SVR model created 90 support vectors (somewhat better than the sparse KRR 109 items), with 96.50% accuracy on the training data (not quite as good as the C# trimmed KRR model), and 95.00% accuracy on the test data (identical to the sparse KRR model). In short, the C# trimmed KRR model and the SVR model are very similar. The large number of hyperparameters involved with KRR and SVR makes exact comparison impossible in practice.

When I get a chance, I’ll refactor the C# code so that the creation of the preliminary full KRR model, and the creation of a trimmed KRR model are all encapsulated into a single Train() function so the call will look like this:

KRRTrim model = new KRRTrim(gamma, alpha);
model.Train(trainX, trainY, lrnRate, exitTol, epsilon);

An interesting experiment.

Different regression techniques vary across several factors, including ability to handle complex data, ability to handle non-numeric data, predictive power, and explainability. Kernel ridge regression is moderately explainable — the model weights indicate which training items have the most influence.

Right: In “Them!” (1954), Dr. Harold Medford and his daughter, Dr. Pat Medford, explain why giant ants have the potential to completely eradicate all humans within a matter of months. My personal grade = solid A.

The C# trimmed KRR demo program. Replace “lt” (less than), “gt”, “lte”, “gte” with Boolean operator symbols. (My blog editor chokes on symbols).

using System;
using System.IO;
using System.Collections.Generic;

namespace KernelRidgeRegressionSGDTrim
{
  internal class KernelRidgeRegressionSGDProgram
  {
    static void Main(string[] args)
    {
      Console.WriteLine("\nBegin C# kernel ridge " +
        "regression approximation to SVR ");

      Console.WriteLine("\nLoading train (200) and" +
        " test (40) data ");
      string trainFile =
        "..\\..\\..\\Data\\synthetic_train_200.txt";
      double[][] trainX =
        Utils.MatLoad(trainFile,
        new int[] { 0, 1, 2, 3, 4 }, ',', "#");
      double[] trainY =
        Utils.MatToVec(Utils.MatLoad(trainFile,
        new int[] { 5 }, ',', "#"));

      string testFile =
        "..\\..\\..\\Data\\synthetic_test_40.txt";
      double[][] testX =
        Utils.MatLoad(testFile,
        new int[] { 0, 1, 2, 3, 4 }, ',', "#");
      double[] testY =
        Utils.MatToVec(Utils.MatLoad(testFile,
        new int[] { 5 }, ',', "#"));
      Console.WriteLine("Done ");

      Console.WriteLine("\nFirst three X predictors: ");
      for (int i = 0; i "lt" 3; ++i)
        Utils.VecShow(trainX[i], 4, 9);
      Console.WriteLine("\nFirst three target y: ");
      for (int i = 0; i "lt" 3; ++i)
        Console.WriteLine(trainY[i].ToString("F4").
          PadLeft(8));

      Console.WriteLine("\nCreating prelim, " +
        "full KRR model ");
      double gamma = 0.3;    // RBF param
      double alpha = 1.0e-5;  // regularization
      Console.WriteLine("Setting RBF gamma = " +
        gamma.ToString("F1"));
      Console.WriteLine("Setting alpha decay =  " +
        alpha.ToString("F5"));
      KRR krr = new KRR(gamma, alpha);
      Console.WriteLine("Done ");

      double lrnRate = 0.05;
      int maxEpochs = 5000;
      double exitTol = 0.001;
      Console.WriteLine("\nSetting lrnRate = " +
        lrnRate.ToString("F4"));
      Console.WriteLine("Setting maxEpochs = " + maxEpochs);
      Console.WriteLine("Setting auto-exit tol = " +
        exitTol.ToString("F4"));
      Console.WriteLine("\nTraining model ");
      krr.Train(trainX, trainY, lrnRate, maxEpochs, exitTol);
      Console.WriteLine("Done ");
      Console.WriteLine("\nPrelim model weights: ");
      Utils.VecShow(krr.wts, 4, 9);

      Console.WriteLine("\nEvaluating full KRR model ");
      Console.WriteLine("Number model item/weights = " +
        krr.wts.Length);
      double trainAcc = krr.Accuracy(trainX, trainY, 0.10);
      double testAcc = krr.Accuracy(testX, testY, 0.10);

      Console.WriteLine("\nTrain acc = " +
        trainAcc.ToString("F4"));
      Console.WriteLine("Test acc = " +
        testAcc.ToString("F4"));

      double trainMSE = krr.MSE(trainX, trainY);
      double testMSE = krr.MSE(testX, testY);

      Console.WriteLine("\nTrain MSE = " +
        trainMSE.ToString("F4"));
      Console.WriteLine("Test MSE = " +
        testMSE.ToString("F4"));

      //double[] x = trainX[0];
      //Console.WriteLine("\nPredicting for trainX[0] ");
      //double y = krr.Predict(x);
      //Console.WriteLine("Predicted y = " +
      //  y.ToString("F4"));

      Console.WriteLine("\nBegin trim/prune model ");
      // larger epsilon = fewer retained weights
      // smaller epsilon = more retained weights
      double epsilon = 0.0035;
      Console.WriteLine("Using trim epsilon = " +
        epsilon.ToString("F6"));
      Console.WriteLine("\nFinding pseudo-support vectors ");
      int[] isSupportVec = new int[trainX.Length];
      // 0 = not supp == predicts too well.
      // 1 = supp == predicts OK or weak.
      // find items and wts that predict 'too well'
      for (int i = 0; i "lt" trainX.Length; ++i)
      {
        if (Math.Abs(krr.Predict(trainX[i]) - trainY[i])
          "gt" epsilon)
          isSupportVec[i] = 1; // not a supper-accurate pred
      }
      Console.WriteLine("Done ");
      Console.WriteLine("\nCreating smaller train dataset ");
      // create a new, smaller training dataset
      List"lt"double[]"gt" tmpTrainX =
        new List"lt"double[]"gt"();
      List"lt"double"gt" tmpTrainY =
        new List"lt"double"gt"();
      for (int i = 0; i "lt" trainX.Length; ++i)
      {
        if (isSupportVec[i] == 1)
        {
          tmpTrainX.Add(trainX[i]);
          tmpTrainY.Add(trainY[i]);
        }
      }
      double[][] newTrainX = tmpTrainX.ToArray();
      double[] newTrainY = tmpTrainY.ToArray();
      Console.WriteLine("Done ");
      // train using new dataset
      Console.WriteLine("\nBegin train new, smaller model ");
      KRR newModel = new KRR(gamma, alpha);
      newModel.Train(newTrainX, newTrainY, lrnRate,
        maxEpochs, exitTol);
      Console.WriteLine("Done ");
      // analyze
      Console.WriteLine("\nEvaluating new model ");
      Console.WriteLine("Number model items/weights = " +
        newModel.wts.Length);

      trainAcc = newModel.Accuracy(newTrainX, newTrainY,
        0.10);
      testAcc = newModel.Accuracy(testX, testY, 0.10);

      Console.WriteLine("\nTrain acc = " +
        trainAcc.ToString("F4"));
      Console.WriteLine("Test acc = " +
        testAcc.ToString("F4"));

      trainMSE = newModel.MSE(newTrainX, newTrainY);
      testMSE = newModel.MSE(testX, testY);

      Console.WriteLine("\nTrain MSE = " +
        trainMSE.ToString("F4"));
      Console.WriteLine("Test MSE = " +
        testMSE.ToString("F4"));

      Console.WriteLine("\nEnd KRR trim/prune demo ");
      Console.ReadLine();
    } // Main()

  } // class Program

  /*
  scikit SVR version results for validation
  Creating scikit SVR model
  Setting gamma = 0.1000
  Setting C = 10.0000
  Setting epsilon = 0.0100

  Number support vectors = 90
  Accuracy (within 0.10) train = 0.9650
  Accuracy (within 0.10) test = 0.9500
  MSE train = 0.0001
  MSE test = 0.0002
  */

  // ========================================================

  public class KRR
  {
    public double gamma;  // for RBF kernel
    public double alpha;  // regularization
    public double[][] trainX;  // need for prediction
    public double[] trainY;  // not needed this version
    public double[] wts;  // one per trainX item
    public Random rnd;

    // ------------------------------------------------------

    public KRR(double gamma, double alpha, int seed = 1)
    {
      this.gamma = gamma;
      this.alpha = alpha;
      this.rnd = new Random(seed);  // shuffle train order
    } // ctor

    // ------------------------------------------------------

    private void Shuffle(int[] indices)
    {
      // Fisher-Yates
      for (int i = 0; i "lt" indices.Length; ++i)
      {
        int ri = this.rnd.Next(i, indices.Length);
        int tmp = indices[i];
        indices[i] = indices[ri];
        indices[ri] = tmp;
      }
    } // Shuffle

    // ------------------------------------------------------

    public int Train(double[][] trainX, double[] trainY,
      double lrnRate, int maxEpochs, double exitTol)
    {
      // return epoch at exit
      int freq = maxEpochs / 5;  // when to show progress

      // 0. store trainX -- needed by Predict()
      this.trainX = trainX;  // by ref -- could copy
      this.trainY = trainY;  // not used this version

      this.wts = new double[trainX.Length];
      double lo = -0.10; double hi = 0.10;
      for (int i = 0; i "lt" this.wts.Length; ++i)
        this.wts[i] = (hi - lo) *
          this.rnd.NextDouble() + lo;

      // 1. set up indices for shuffling
      int[] indices = new int[trainX.Length];
      for (int i = 0; i "lt" indices.Length; ++i)
        indices[i] = i;

      // set up weights for auto-exit
      double[] prevWeights = new double[trainX.Length];
      for (int j = 0; j "lt" trainX.Length; ++j)
        prevWeights[j] = this.wts[j];

      for (int epoch = 0; epoch "lt" maxEpochs; ++epoch)
      {
        Shuffle(indices);
        for (int i = 0; i "lt" trainX.Length; ++i)
        {
          int idx = indices[i];
          double[] x = trainX[idx];
          double predY = this.Predict(x);
          double actualY = trainY[idx];

          // update wt assoc with x
          this.wts[idx] -= lrnRate * (predY - actualY);
        } // each item

        if (epoch % freq == 0)
        {
          double rmse = this.MSE(trainX, trainY);
          double acc = this.Accuracy(trainX, trainY, 0.10);
          string s1 = "epoch = " +
            epoch.ToString().PadLeft(6);
          string s2 = " MSE = " +
            rmse.ToString("F4");
          string s3 = " acc = " + acc.ToString("F4");
          Console.WriteLine(s1 + s2 + s3);
        }


        // if max_change_in_wts / max_weights "lt" tol
        int numWts = this.wts.Length;
        double[] weightDeltas = new double[numWts];
        for (int j = 0; j "lt" numWts; ++j)
          weightDeltas[j] =
            Math.Abs(prevWeights[j] - this.wts[j]);
        double maxChange = weightDeltas[0];
        for (int j = 0; j "lt" numWts; ++j)
          if (weightDeltas[j] "gt" maxChange)
            maxChange = weightDeltas[j];

        double maxWeight = Math.Abs(this.wts[0]);
        for (int j = 0; j "lt" numWts; ++j)
          if (Math.Abs(this.wts[j]) "gt" maxWeight)
            maxWeight = Math.Abs(this.wts[j]);
        if (maxWeight != 0.0 &&
          (maxChange / maxWeight) "lt" exitTol)
        {
          Console.WriteLine("Auto-exit at epoch " + epoch);
          return epoch;
        }

        // an auto-exit didn't happen
        for (int j = 0; j "lt" numWts; ++j)
          prevWeights[j] = this.wts[j];

      } // each epoch

      // apply one final wt decay regularization
      // as opposed to small decay after every epoch
      for (int j = 0; j "lt" this.wts.Length; ++j)
        this.wts[j] *= (1.0 - this.alpha);
      return maxEpochs;

    } // Train

    // ------------------------------------------------------

    private double Rbf(double[] v1, double[] v2)
    {
      // the gamma version aot len_scale version
      int dim = v1.Length;
      double sum = 0.0;
      for (int i = 0; i "lt" dim; ++i)
      {
        sum += (v1[i] - v2[i]) * (v1[i] - v2[i]);
      }
      return Math.Exp(-1 * this.gamma * sum);
    }

    // ------------------------------------------------------

    public double Predict(double[] x)
    {
      int N = this.trainX.Length;
      double sum = 0.0;
      for (int i = 0; i "lt" N; ++i)
      {
        double[] xx = this.trainX[i];
        double k = this.Rbf(x, xx);
        sum += this.wts[i] * k;
      }
      return sum;
    }

    // ------------------------------------------------------

    public double Accuracy(double[][] dataX,
      double[] dataY, double pctClose)
    {
      int numCorrect = 0; int numWrong = 0;
      int n = dataX.Length;
      for (int i = 0; i "lt" n; ++i)
      {
        double[] x = dataX[i];
        double actualY = dataY[i];
        double predY = this.Predict(x);
        if (Math.Abs(actualY - predY) "lt"
          Math.Abs(actualY * pctClose))
          ++numCorrect;
        else
          ++numWrong;
      }
      return (numCorrect * 1.0) / n;
    }

    // ------------------------------------------------------

    public double MSE(double[][] dataX, double[] dataY)
    {
      double sum = 0.0;
      int n = dataX.Length;
      for (int i = 0; i "lt" n; ++i)
      {
        double[] x = dataX[i];
        double actualY = dataY[i];
        double predY = this.Predict(x);
        sum += (actualY - predY) * (actualY - predY);
      }
      return sum / n;
    }
  } // class KRR

  // ========================================================

  public class Utils
  {
    // ------------------------------------------------------

    public static double[][] MatLoad(string fn,
      int[] usecols, char sep, string comment)
    {
      List"lt"double[]"gt" result =
        new List"lt"double[]"gt"();
      string line = "";
      FileStream ifs = new FileStream(fn, FileMode.Open);
      StreamReader sr = new StreamReader(ifs);
      while ((line = sr.ReadLine()) != null)
      {
        if (line.StartsWith(comment) == true)
          continue;
        string[] tokens = line.Split(sep);
        List"lt"double"gt" lst = new List"lt"double"gt"();
        for (int j = 0; j "lt" usecols.Length; ++j)
          lst.Add(double.Parse(tokens[usecols[j]]));
        double[] row = lst.ToArray();
        result.Add(row);
      }
      sr.Close(); ifs.Close();
      return result.ToArray();
    }

    // ------------------------------------------------------

    public static double[] MatToVec(double[][] mat)
    {
      int nRows = mat.Length;
      int nCols = mat[0].Length;
      double[] result = new double[nRows * nCols];
      int k = 0;
      for (int i = 0; i "lt" nRows; ++i)
        for (int j = 0; j "lt" nCols; ++j)
          result[k++] = mat[i][j];
      return result;
    }

    // ------------------------------------------------------

    public static void MatShow(double[][] m, int dec, int wid)
    {
      int nRows = m.Length; int nCols = m[0].Length;
      double small = 1.0 / Math.Pow(10, dec);
      for (int i = 0; i "lt" nRows; ++i)
      {
        for (int j = 0; j "lt" nCols; ++j)
        {
          double v = m[i][j];
          if (Math.Abs(v) "lt" small) v = 0.0;
          Console.Write(v.ToString("F" + dec).
            PadLeft(wid));
        }
        Console.WriteLine("");
      }
    }

    // ------------------------------------------------------

    public static void VecShow(double[] vec, int dec, int wid)
    {
      for (int i = 0; i "lt" vec.Length; ++i)
        Console.Write(vec[i].ToString("F" + dec).
          PadLeft(wid));
      Console.WriteLine("");
    }

    // ------------------------------------------------------

  } // class Utils

  // ========================================================

} // ns

Training data:

# synthetic_train_200.txt
#
-0.1660,  0.4406, -0.9998, -0.3953, -0.7065,  0.4840
 0.0776, -0.1616,  0.3704, -0.5911,  0.7562,  0.1568
-0.9452,  0.3409, -0.1654,  0.1174, -0.7192,  0.8054
 0.9365, -0.3732,  0.3846,  0.7528,  0.7892,  0.1345
-0.8299, -0.9219, -0.6603,  0.7563, -0.8033,  0.7955
 0.0663,  0.3838, -0.3690,  0.3730,  0.6693,  0.3206
-0.9634,  0.5003,  0.9777,  0.4963, -0.4391,  0.7377
-0.1042,  0.8172, -0.4128, -0.4244, -0.7399,  0.4801
-0.9613,  0.3577, -0.5767, -0.4689, -0.0169,  0.6861
-0.7065,  0.1786,  0.3995, -0.7953, -0.1719,  0.5569
 0.3888, -0.1716, -0.9001,  0.0718,  0.3276,  0.2500
 0.1731,  0.8068, -0.7251, -0.7214,  0.6148,  0.3297
-0.2046, -0.6693,  0.8550, -0.3045,  0.5016,  0.2129
 0.2473,  0.5019, -0.3022, -0.4601,  0.7918,  0.2613
-0.1438,  0.9297,  0.3269,  0.2434, -0.7705,  0.5171
 0.1568, -0.1837, -0.5259,  0.8068,  0.1474,  0.3307
-0.9943,  0.2343, -0.3467,  0.0541,  0.7719,  0.5581
 0.2467, -0.9684,  0.8589,  0.3818,  0.9946,  0.1092
-0.6553, -0.7257,  0.8652,  0.3936, -0.8680,  0.7018
 0.8460,  0.4230, -0.7515, -0.9602, -0.9476,  0.1996
-0.9434, -0.5076,  0.7201,  0.0777,  0.1056,  0.5664
 0.9392,  0.1221, -0.9627,  0.6013, -0.5341,  0.1533
 0.6142, -0.2243,  0.7271,  0.4942,  0.1125,  0.1661
 0.4260,  0.1194, -0.9749, -0.8561,  0.9346,  0.2230
 0.1362, -0.5934, -0.4953,  0.4877, -0.6091,  0.3810
 0.6937, -0.5203, -0.0125,  0.2399,  0.6580,  0.1460
-0.6864, -0.9628, -0.8600, -0.0273,  0.2127,  0.5387
 0.9772,  0.1595, -0.2397,  0.1019,  0.4907,  0.1611
 0.3385, -0.4702, -0.8673, -0.2598,  0.2594,  0.2270
-0.8669, -0.4794,  0.6095, -0.6131,  0.2789,  0.4700
 0.0493,  0.8496, -0.4734, -0.8681,  0.4701,  0.3516
 0.8639, -0.9721, -0.5313,  0.2336,  0.8980,  0.1412
 0.9004,  0.1133,  0.8312,  0.2831, -0.2200,  0.1782
 0.0991,  0.8524,  0.8375, -0.2102,  0.9265,  0.2150
-0.6521, -0.7473, -0.7298,  0.0113, -0.9570,  0.7422
 0.6190, -0.3105,  0.8802,  0.1640,  0.7577,  0.1056
 0.6895,  0.8108, -0.0802,  0.0927,  0.5972,  0.2214
 0.1982, -0.9689,  0.1870, -0.1326,  0.6147,  0.1310
-0.3695,  0.7858,  0.1557, -0.6320,  0.5759,  0.3773
-0.1596,  0.3581,  0.8372, -0.9992,  0.9535,  0.2071
-0.2468,  0.9476,  0.2094,  0.6577,  0.1494,  0.4132
 0.1737,  0.5000,  0.7166,  0.5102,  0.3961,  0.2611
 0.7290, -0.3546,  0.3416, -0.0983, -0.2358,  0.1332
-0.3652,  0.2438, -0.1395,  0.9476,  0.3556,  0.4170
-0.6029, -0.1466, -0.3133,  0.5953,  0.7600,  0.4334
-0.4596, -0.4953,  0.7098,  0.0554,  0.6043,  0.2775
 0.1450,  0.4663,  0.0380,  0.5418,  0.1377,  0.2931
-0.8636, -0.2442, -0.8407,  0.9656, -0.6368,  0.7429
 0.6237,  0.7499,  0.3768,  0.1390, -0.6781,  0.2185
-0.5499,  0.1850, -0.3755,  0.8326,  0.8193,  0.4399
-0.4858, -0.7782, -0.6141, -0.0008,  0.4572,  0.4197
 0.7033, -0.1683,  0.2334, -0.5327, -0.7961,  0.1776
 0.0317, -0.0457, -0.6947,  0.2436,  0.0880,  0.3345
 0.5031, -0.5559,  0.0387,  0.5706, -0.9553,  0.3107
-0.3513,  0.7458,  0.6894,  0.0769,  0.7332,  0.3170
 0.2205,  0.5992, -0.9309,  0.5405,  0.4635,  0.3532
-0.4806, -0.4859,  0.2646, -0.3094,  0.5932,  0.3202
 0.9809, -0.3995, -0.7140,  0.8026,  0.0831,  0.1600
 0.9495,  0.2732,  0.9878,  0.0921,  0.0529,  0.1289
-0.9476, -0.6792,  0.4913, -0.9392, -0.2669,  0.5966
 0.7247,  0.3854,  0.3819, -0.6227, -0.1162,  0.1550
-0.5922, -0.5045, -0.4757,  0.5003, -0.0860,  0.5863
-0.8861,  0.0170, -0.5761,  0.5972, -0.4053,  0.7301
 0.6877, -0.2380,  0.4997,  0.0223,  0.0819,  0.1404
 0.9189,  0.6079, -0.9354,  0.4188, -0.0700,  0.1907
-0.1428, -0.7820,  0.2676,  0.6059,  0.3936,  0.2790
 0.5324, -0.3151,  0.6917, -0.1425,  0.6480,  0.1071
-0.8432, -0.9633, -0.8666, -0.0828, -0.7733,  0.7784
-0.9444,  0.5097, -0.2103,  0.4939, -0.0952,  0.6787
-0.0520,  0.6063, -0.1952,  0.8094, -0.9259,  0.4836
 0.5477, -0.7487,  0.2370, -0.9793,  0.0773,  0.1241
 0.2450,  0.8116,  0.9799,  0.4222,  0.4636,  0.2355
 0.8186, -0.1983, -0.5003, -0.6531, -0.7611,  0.1511
-0.4714,  0.6382, -0.3788,  0.9648, -0.4667,  0.5950
 0.0673, -0.3711,  0.8215, -0.2669, -0.1328,  0.2677
-0.9381,  0.4338,  0.7820, -0.9454,  0.0441,  0.5518
-0.3480,  0.7190,  0.1170,  0.3805, -0.0943,  0.4724
-0.9813,  0.1535, -0.3771,  0.0345,  0.8328,  0.5438
-0.1471, -0.5052, -0.2574,  0.8637,  0.8737,  0.3042
-0.5454, -0.3712, -0.6505,  0.2142, -0.1728,  0.5783
 0.6327, -0.6297,  0.4038, -0.5193,  0.1484,  0.1153
-0.5424,  0.3282, -0.0055,  0.0380, -0.6506,  0.6613
 0.1414,  0.9935,  0.6337,  0.1887,  0.9520,  0.2540
-0.9351, -0.8128, -0.8693, -0.0965, -0.2491,  0.7353
 0.9507, -0.6640,  0.9456,  0.5349,  0.6485,  0.1059
-0.0462, -0.9737, -0.2940, -0.0159,  0.4602,  0.2606
-0.0627, -0.0852, -0.7247, -0.9782,  0.5166,  0.2977
 0.0478,  0.5098, -0.0723, -0.7504, -0.3750,  0.3335
 0.0090,  0.3477,  0.5403, -0.7393, -0.9542,  0.4415
-0.9748,  0.3449,  0.3736, -0.1015,  0.8296,  0.4358
 0.2887, -0.9895, -0.0311,  0.7186,  0.6608,  0.2057
 0.1570, -0.4518,  0.1211,  0.3435, -0.2951,  0.3244
 0.7117, -0.6099,  0.4946, -0.4208,  0.5476,  0.1096
-0.2929, -0.5726,  0.5346, -0.3827,  0.4665,  0.2465
 0.4889, -0.5572, -0.5718, -0.6021, -0.7150,  0.2163
-0.7782,  0.3491,  0.5996, -0.8389, -0.5366,  0.6516
-0.5847,  0.8347,  0.4226,  0.1078, -0.3910,  0.6134
 0.8469,  0.4121, -0.0439, -0.7476,  0.9521,  0.1571
-0.6803, -0.5948, -0.1376, -0.1916, -0.7065,  0.7156
 0.2878,  0.5086, -0.5785,  0.2019,  0.4979,  0.2980
 0.2764,  0.1943, -0.4090,  0.4632,  0.8906,  0.2960
-0.8877,  0.6705, -0.6155, -0.2098, -0.3998,  0.7107
-0.8398,  0.8093, -0.2597,  0.0614, -0.0118,  0.6502
-0.8476,  0.0158, -0.4769, -0.2859, -0.7839,  0.7715
 0.5751, -0.7868,  0.9714, -0.6457,  0.1448,  0.1175
 0.4802, -0.7001,  0.1022, -0.5668,  0.5184,  0.1090
 0.4458, -0.6469,  0.7239, -0.9604,  0.7205,  0.0779
 0.5175,  0.4339,  0.9747, -0.4438, -0.9924,  0.2879
 0.8678,  0.7158,  0.4577,  0.0334,  0.4139,  0.1678
 0.5406,  0.5012,  0.2264, -0.1963,  0.3946,  0.2088
-0.9938,  0.5498,  0.7928, -0.5214, -0.7585,  0.7687
 0.7661,  0.0863, -0.4266, -0.7233, -0.4197,  0.1466
 0.2277, -0.3517, -0.0853, -0.1118,  0.6563,  0.1767
 0.3499, -0.5570, -0.0655, -0.3705,  0.2537,  0.1632
 0.7547, -0.1046,  0.5689, -0.0861,  0.3125,  0.1257
 0.8186,  0.2110,  0.5335,  0.0094, -0.0039,  0.1391
 0.6858, -0.8644,  0.1465,  0.8855,  0.0357,  0.1845
-0.4967,  0.4015,  0.0805,  0.8977,  0.2487,  0.4663
 0.6760, -0.9841,  0.9787, -0.8446, -0.3557,  0.1509
-0.1203, -0.4885,  0.6054, -0.0443, -0.7313,  0.4854
 0.8557,  0.7919, -0.0169,  0.7134, -0.1628,  0.2002
 0.0115, -0.6209,  0.9300, -0.4116, -0.7931,  0.4052
-0.7114, -0.9718,  0.4319,  0.1290,  0.5892,  0.3661
 0.3915,  0.5557, -0.1870,  0.2955, -0.6404,  0.2954
-0.3564, -0.6548, -0.1827, -0.5172, -0.1862,  0.4622
 0.2392, -0.4959,  0.5857, -0.1341, -0.2850,  0.2470
-0.3394,  0.3947, -0.4627,  0.6166, -0.4094,  0.5325
 0.7107,  0.7768, -0.6312,  0.1707,  0.7964,  0.2757
-0.1078,  0.8437, -0.4420,  0.2177,  0.3649,  0.4028
-0.3139,  0.5595, -0.6505, -0.3161, -0.7108,  0.5546
 0.4335,  0.3986,  0.3770, -0.4932,  0.3847,  0.1810
-0.2562, -0.2894, -0.8847,  0.2633,  0.4146,  0.4036
 0.2272,  0.2966, -0.6601, -0.7011,  0.0284,  0.2778
-0.0743, -0.1421, -0.0054, -0.6770, -0.3151,  0.3597
-0.4762,  0.6891,  0.6007, -0.1467,  0.2140,  0.4266
-0.4061,  0.7193,  0.3432,  0.2669, -0.7505,  0.6147
-0.0588,  0.9731,  0.8966,  0.2902, -0.6966,  0.4955
-0.0627, -0.1439,  0.1985,  0.6999,  0.5022,  0.3077
 0.1587,  0.8494, -0.8705,  0.9827, -0.8940,  0.4263
-0.7850,  0.2473, -0.9040, -0.4308, -0.8779,  0.7199
 0.4070,  0.3369, -0.2428, -0.6236,  0.4940,  0.2215
-0.0242,  0.0513, -0.9430,  0.2885, -0.2987,  0.3947
-0.5416, -0.1322, -0.2351, -0.0604,  0.9590,  0.3683
 0.1055,  0.7783, -0.2901, -0.5090,  0.8220,  0.2984
-0.9129,  0.9015,  0.1128, -0.2473,  0.9901,  0.4776
-0.9378,  0.1424, -0.6391,  0.2619,  0.9618,  0.5368
 0.7498, -0.0963,  0.4169,  0.5549, -0.0103,  0.1614
-0.2612, -0.7156,  0.4538, -0.0460, -0.1022,  0.3717
 0.7720,  0.0552, -0.1818, -0.4622, -0.8560,  0.1685
-0.4177,  0.0070,  0.9319, -0.7812,  0.3461,  0.3052
-0.0001,  0.5542, -0.7128, -0.8336, -0.2016,  0.3803
 0.5356, -0.4194, -0.5662, -0.9666, -0.2027,  0.1776
-0.2378,  0.3187, -0.8582, -0.6948, -0.9668,  0.5474
-0.1947, -0.3579,  0.1158,  0.9869,  0.6690,  0.2992
 0.3992,  0.8365, -0.9205, -0.8593, -0.0520,  0.3154
-0.0209,  0.0793,  0.7905, -0.1067,  0.7541,  0.1864
-0.4928, -0.4524, -0.3433,  0.0951, -0.5597,  0.6261
-0.8118,  0.7404, -0.5263, -0.2280,  0.1431,  0.6349
 0.0516, -0.8480,  0.7483,  0.9023,  0.6250,  0.1959
-0.3212,  0.1093,  0.9488, -0.3766,  0.3376,  0.2735
-0.3481,  0.5490, -0.3484,  0.7797,  0.5034,  0.4379
-0.5785, -0.9170, -0.3563, -0.9258,  0.3877,  0.4121
 0.3407, -0.1391,  0.5356,  0.0720, -0.9203,  0.3458
-0.3287, -0.8954,  0.2102,  0.0241,  0.2349,  0.3247
-0.1353,  0.6954, -0.0919, -0.9692,  0.7461,  0.3338
 0.9036, -0.8982, -0.5299, -0.8733, -0.1567,  0.1187
 0.7277, -0.8368, -0.0538, -0.7489,  0.5458,  0.0830
 0.9049,  0.8878,  0.2279,  0.9470, -0.3103,  0.2194
 0.7957, -0.1308, -0.5284,  0.8817,  0.3684,  0.2172
 0.4647, -0.4931,  0.2010,  0.6292, -0.8918,  0.3371
-0.7390,  0.6849,  0.2367,  0.0626, -0.5034,  0.7039
-0.1567, -0.8711,  0.7940, -0.5932,  0.6525,  0.1710
 0.7635, -0.0265,  0.1969,  0.0545,  0.2496,  0.1445
 0.7675,  0.1354, -0.7698, -0.5460,  0.1920,  0.1728
-0.5211, -0.7372, -0.6763,  0.6897,  0.2044,  0.5217
 0.1913,  0.1980,  0.2314, -0.8816,  0.5006,  0.1998
 0.8964,  0.0694, -0.6149,  0.5059, -0.9854,  0.1825
 0.1767,  0.7104,  0.2093,  0.6452,  0.7590,  0.2832
-0.3580, -0.7541,  0.4426, -0.1193, -0.7465,  0.5657
-0.5996,  0.5766, -0.9758, -0.3933, -0.9572,  0.6800
 0.9950,  0.1641, -0.4132,  0.8579,  0.0142,  0.2003
-0.4717, -0.3894, -0.2567, -0.5111,  0.1691,  0.4266
 0.3917, -0.8561,  0.9422,  0.5061,  0.6123,  0.1212
-0.0366, -0.1087,  0.3449, -0.1025,  0.4086,  0.2475
 0.3633,  0.3943,  0.2372, -0.6980,  0.5216,  0.1925
-0.5325, -0.6466, -0.2178, -0.3589,  0.6310,  0.3568
 0.2271,  0.5200, -0.1447, -0.8011, -0.7699,  0.3128
 0.6415,  0.1993,  0.3777, -0.0178, -0.8237,  0.2181
-0.5298, -0.0768, -0.6028, -0.9490,  0.4588,  0.4356
 0.6870, -0.1431,  0.7294,  0.3141,  0.1621,  0.1632
-0.5985,  0.0591,  0.7889, -0.3900,  0.7419,  0.2945
 0.3661,  0.7984, -0.8486,  0.7572, -0.6183,  0.3449
 0.6995,  0.3342, -0.3113, -0.6972,  0.2707,  0.1712
 0.2565,  0.9126,  0.1798, -0.6043, -0.1413,  0.2893
-0.3265,  0.9839, -0.2395,  0.9854,  0.0376,  0.4770
 0.2690, -0.1722,  0.9818,  0.8599, -0.7015,  0.3954
-0.2102, -0.0768,  0.1219,  0.5607, -0.0256,  0.3949
 0.8216, -0.9555,  0.6422, -0.6231,  0.3715,  0.0801
-0.2896,  0.9484, -0.7545, -0.6249,  0.7789,  0.4370
-0.9985, -0.5448, -0.7092, -0.5931,  0.7926,  0.5402

Test data:

# synthetic_test_40.txt
#
 0.7462,  0.4006, -0.0590,  0.6543, -0.0083,  0.1935
 0.8495, -0.2260, -0.0142, -0.4911,  0.7699,  0.1078
-0.2335, -0.4049,  0.4352, -0.6183, -0.7636,  0.5088
 0.1810, -0.5142,  0.2465,  0.2767, -0.3449,  0.3136
-0.8650,  0.7611, -0.0801,  0.5277, -0.4922,  0.7140
-0.2358, -0.7466, -0.5115, -0.8413, -0.3943,  0.4533
 0.4834,  0.2300,  0.3448, -0.9832,  0.3568,  0.1360
-0.6502, -0.6300,  0.6885,  0.9652,  0.8275,  0.3046
-0.3053,  0.5604,  0.0929,  0.6329, -0.0325,  0.4756
-0.7995,  0.0740, -0.2680,  0.2086,  0.9176,  0.4565
-0.2144, -0.2141,  0.5813,  0.2902, -0.2122,  0.4119
-0.7278, -0.0987, -0.3312, -0.5641,  0.8515,  0.4438
 0.3793,  0.1976,  0.4933,  0.0839,  0.4011,  0.1905
-0.8568,  0.9573, -0.5272,  0.3212, -0.8207,  0.7415
-0.5785,  0.0056, -0.7901, -0.2223,  0.0760,  0.5551
 0.0735, -0.2188,  0.3925,  0.3570,  0.3746,  0.2191
 0.1230, -0.2838,  0.2262,  0.8715,  0.1938,  0.2878
 0.4792, -0.9248,  0.5295,  0.0366, -0.9894,  0.3149
-0.4456,  0.0697,  0.5359, -0.8938,  0.0981,  0.3879
 0.8629, -0.8505, -0.4464,  0.8385,  0.5300,  0.1769
 0.1995,  0.6659,  0.7921,  0.9454,  0.9970,  0.2330
-0.0249, -0.3066, -0.2927, -0.4923,  0.8220,  0.2437
 0.4513, -0.9481, -0.0770, -0.4374, -0.9421,  0.2879
-0.3405,  0.5931, -0.3507, -0.3842,  0.8562,  0.3987
 0.9538,  0.0471,  0.9039,  0.7760,  0.0361,  0.1706
-0.0887,  0.2104,  0.9808,  0.5478, -0.3314,  0.4128
-0.8220, -0.6302,  0.0537, -0.1658,  0.6013,  0.4306
-0.4123, -0.2880,  0.9074, -0.0461, -0.4435,  0.5144
 0.0060,  0.2867, -0.7775,  0.5161,  0.7039,  0.3599
-0.7968, -0.5484,  0.9426, -0.4308,  0.8148,  0.2979
 0.7811,  0.8450, -0.6877,  0.7594,  0.2640,  0.2362
-0.6802, -0.1113, -0.8325, -0.6694, -0.6056,  0.6544
 0.3821,  0.1476,  0.7466, -0.5107,  0.2592,  0.1648
 0.7265,  0.9683, -0.9803, -0.4943, -0.5523,  0.2454
-0.9049, -0.9797, -0.0196, -0.9090, -0.4433,  0.6447
-0.4607,  0.1811, -0.2389,  0.4050, -0.0078,  0.5229
 0.2664, -0.2932, -0.4259, -0.7336,  0.8742,  0.1834
-0.4507,  0.1029, -0.6294, -0.1158, -0.6294,  0.6081
 0.8948, -0.0124,  0.9278,  0.2899, -0.0314,  0.1534
-0.1323, -0.8813, -0.0146, -0.0697,  0.6135,  0.2386
