One morning before work, I figured I’d implement kernel support vector regression (SVR), from scratch, using Python. It took me a bit longer than expected but I got a demo up and running.

My implementation uses hard-wired RBF (radial basis function) as the kernel function. I use the sequential minimal optimization (SMO) algorithm for training.

I won’t try to explain SVR or SMO, but I will caution you that I’ve seen a huge amount of grossly incorrect information about these two topics.

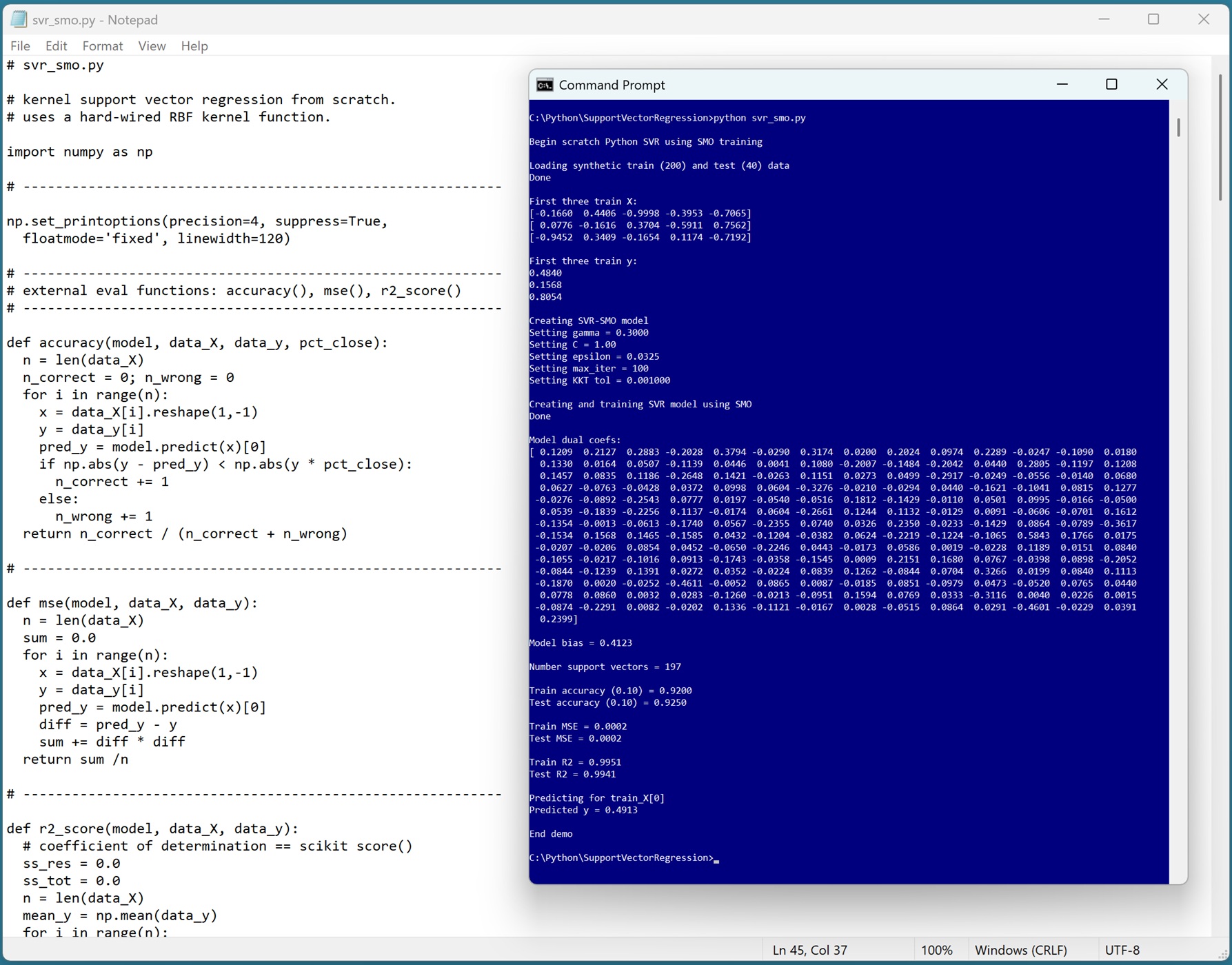

Here’s the output of my demo:

Begin scratch Python SVR using SMO training

Loading synthetic train (200) and test (40) data
Done

First three train X:
[-0.1660  0.4406 -0.9998 -0.3953 -0.7065]
[ 0.0776 -0.1616  0.3704 -0.5911  0.7562]
[-0.9452  0.3409 -0.1654  0.1174 -0.7192]

First three train y:
0.4840
0.1568
0.8054

Creating SVR-SMO model
Setting gamma = 0.3000
Setting C = 1.00
Setting epsilon = 0.0325
Setting max_iter = 100
Setting KKT tol = 0.001000

Creating and training SVR model using SMO
Done

Model dual coefs:
[ 0.1209  0.2127  0.2883 -0.2028  . . .  0.0180
  0.1330  0.0164  0.0507 -0.1139  . . .  0.1208
  . . .
  0.0778  0.0860  0.0032  0.0283  . . .  0.0015
 -0.0874 -0.2291  0.0082 -0.0202  . . .  0.0391
  0.2399]

Model bias = 0.4123

Number support vectors = 197

Train accuracy (0.10) = 0.9200
Test accuracy (0.10) = 0.9250

Train MSE = 0.0002
Test MSE = 0.0002

Train R2 = 0.9951
Test R2 = 0.9941

Predicting for train_X[0]
Predicted y = 0.4913

End demo

The demo data is synthetic. It was generated by a 5-10-1 neural network with random weights and biases. There are 200 training items and 40 test items. The data is quasi-normalized, which is needed in most situations when using SVR.

I don’t like to be negative, but I am not a fan of SVR. Kernel ridge regression (KRR), which is closely related to SVR, is clearly superior to SVR. SVR is more complicated to implement than KRR. SVR is much more difficult to train than KRR. SVR usually gives less accuracy than KRR (mostly because of the difficulty tuning SVR parameters). But there are a few relatively rare scenarios where SVR works well.

I used the standard SVR SMO training algorithm design with two parallel alpha weight vectors, named alpha and alpha*. These are Lagrange multipliers associated with data points that fall above the upper margin of the epsilon error tube, and points that fall below the epsilon tube. It is possible to use a single alpha vector, but my experiments showed that such a design seems to always retain all training items as the support vectors.

The SMO algorithm is very complex, but the key parts look like:

init alpha[] and alpha*[] to number of training items
loop several times
  loop each train item i
    compute predicted y and error for i
    check "KKT" conditions to see if i is "good"
    if i is good
      pick a random item j that is not i
      compute predicted y and error for j
      use very complex math to update alpha[i], alpha[j],
        alpha*[i], alpha*[j]
    else
      next i
    end-if
  end-loop
end-loop

Because the SMO algorithm is so complex, all of the implementations I’ve seen are wildly different from each other.

Good fun.

Support vector regression made a big splash in the late 1990s, but faded out quickly as soon as people discovered all of its problems, and realized the clear superiority of the closely-related kernel ridge regression (KRR) for most problem scenarios. But I admire the passion that some people have for SVR. When I worked at Microsoft Research, my office in Building 99 was just a few doors away from the office of John Platt, the inventor of the SMO algorithm. Platt is at Google now.

Right: “Josh Kirby: Time Warrior” (1995) tells the story of . . . well, I really couldn’t quite follow it. Josh Kirby is a 14-year-old boy who is visited by people from the 25th century. Over the course of six 90-minute videos, they travel through time to locate the pieces of a super weapon. The stop motion effects are quite good . . . the movie, not so much. But again, I give the movie creators a lot of credit for their passion.

Demo program. Replace “lt” (less than), “gt”, “lte”, “gte” with Boolean operator symbols. My blog editor chokes on symbols.

# svr_smo.py

# kernel support vector regression from scratch.
# uses a hard-wired RBF kernel function.

import numpy as np

# -----------------------------------------------------------

np.set_printoptions(precision=4, suppress=True,
  floatmode='fixed', linewidth=120)

# -----------------------------------------------------------
# external eval functions: accuracy(), mse(), r2_score()
# -----------------------------------------------------------

def accuracy(model, data_X, data_y, pct_close):
  n = len(data_X)
  n_correct = 0; n_wrong = 0
  for i in range(n):
    x = data_X[i].reshape(1,-1)
    y = data_y[i]
    pred_y = model.predict(x)[0]
    if np.abs(y - pred_y) "lt" np.abs(y * pct_close):
      n_correct += 1
    else:
      n_wrong += 1
  return n_correct / (n_correct + n_wrong)

# -----------------------------------------------------------

def mse(model, data_X, data_y):
  n = len(data_X)
  sum = 0.0
  for i in range(n):
    x = data_X[i].reshape(1,-1)
    y = data_y[i]
    pred_y = model.predict(x)[0]
    diff = pred_y - y
    sum += diff * diff
  return sum /n

# -----------------------------------------------------------

def r2_score(model, data_X, data_y):
  # coefficient of determination == scikit score()
  ss_res = 0.0
  ss_tot = 0.0
  n = len(data_X)
  mean_y = np.mean(data_y)
  for i in range(n):
    x = data_X[i].reshape(1,-1)
    y = data_y[i]
    pred_y = model.predict(x)[0]
    ss_res += (y - pred_y) * (y - pred_y)
    ss_tot += (y - mean_y) * (y - mean_y)
  result = 1.0 - (ss_res / ss_tot)
  return result

# ===========================================================

class KernelSVR:
  def __init__(self, gamma=0.1, epsilon=0.1, C=1.0,
    max_iter=100, tol=1.0e-3, seed=1):
    self.gamma = gamma
    self.epsilon = epsilon
    self.C = C
    self.max_iter = max_iter
    self.tol = tol  # for KKT conditions
    self.rnd = np.random.RandomState(seed)

    self.alpha = None
    self.alpha_star = None
    self.b = 0.0
    self.supp_X = None
    self.supp_y = None
    self.dual_weights = None
  # ---------------------------------------------------------

  def kernel_matrix(self, X1, X2):
    sq_dist = np.sum(X1**2, axis=1).reshape(-1, 1) + \
      np.sum(X2**2, axis=1) - 2 * np.dot(X1, X2.T)
    return np.exp(-self.gamma * sq_dist)

  # ---------------------------------------------------------

  def fit(self, X, y):
    n = X.shape[0]
    self.alpha = np.zeros(n)
    self.alpha_star = np.zeros(n)
    self.b = np.mean(y)

    K = self.kernel_matrix(X, X)
    n_passes = 0
    while n_passes "lt" self.max_iter:
      num_changed_alphas = 0

      for i in range(n):
        # prediction and error for i
        pred_i = np.dot(self.alpha_star - \
          self.alpha, K[:, i]) + self.b
        err_i = pred_i - y[i]

        # check KKT conditions for SVR within tolerance
        if ((err_i "gt" self.epsilon + self.tol and \
             self.alpha[i] "lt" self.C) or \
            (err_i "gt" self.epsilon + self.tol and \
             self.alpha_star[i] "gt" 0) or
            (err_i "lt" -self.epsilon - self.tol and \
             self.alpha[i] "gt" 0) or \
            (err_i "lt" -self.epsilon - self.tol and \
             self.alpha_star[i] "lt" self.C)):

          # pick a random second index j != i
          j = i
          while j == i:
            j = self.rnd.randint(0, n)

          pred_j = np.dot(self.alpha_star - \
            self.alpha, K[:, j]) + self.b
          err_j = pred_j - y[j]

          # save old values
          a_i_old, as_i_old = self.alpha[i], \
            self.alpha_star[i]
          a_j_old, as_j_old = self.alpha[j], \
            self.alpha_star[j]

          # kernel second derivative step denominator
          eta = K[i, i] + K[j, j] - 2 * K[i, j]
          if eta "lte" 0:
            continue

          # SVR linear constraint constant
          constraint = (as_i_old - a_i_old) + (as_j_old - a_j_old)

          # joint proxy variable s_j = (alpha_j* - alpha_j)
          s_j_old = as_j_old - a_j_old
          s_j_new = s_j_old + (err_i - err_j) / eta

          # bounds L and H for the proxy s_j
          L = max(-self.C, constraint - self.C)
          H = min(self.C, constraint + self.C)
          s_j_new = np.clip(s_j_new, L, H)

          if abs(s_j_new - s_j_old) "lt" 1.0e-5:
            continue

          # reconstruct alpha_j and alpha_j*
          if s_j_new "gte" 0.0:
            self.alpha_star[j] = s_j_new
            self.alpha[j] = 0.0
          else:
            self.alpha_star[j] = 0.0
            self.alpha[j] = -s_j_new

          # update alpha_i and alpha_i*
          s_i_new = constraint - s_j_new
          if s_i_new "gte" 0.0:
            self.alpha_star[i] = s_i_new
            self.alpha[i] = 0.0
          else:
            self.alpha_star[i] = 0.0
            self.alpha[i] = -s_i_new

          # update bias
          b1 = self.b - err_i - ((self.alpha_star[i] - \
               self.alpha[i]) - (as_i_old - a_i_old)) * \
               K[i, i] - ((self.alpha_star[j] - \
               self.alpha[j]) - (as_j_old - a_j_old)) * \
               K[i, j]
          b2 = self.b - err_j - ((self.alpha_star[i] - \
               self.alpha[i]) - (as_i_old - a_i_old)) * \
               K[i, j] - ((self.alpha_star[j] - \
               self.alpha[j]) - (as_j_old - a_j_old)) * \
               K[j, j]

          if 0.0 "lt" self.alpha[i] "lt" self.C or \
            0.0 "lt" self.alpha_star[i] "lt" self.C:
            self.b = b1
          elif 0 "lt" self.alpha[j] "lt" self.C or \
            0.0 "lt" self.alpha_star[j] "lt" self.C:
            self.b = b2
          else:
            self.b = (b1 + b2) / 2.0

          num_changed_alphas += 1

      if num_changed_alphas == 0:
        n_passes += 1
      else:
        n_passes = 0

    # prune: store only explicit support vectors

    # 1. combine alpha and alpha*
    self.dual_weights = self.alpha_star - self.alpha

    # 2. compute mask
    sv_mask = np.abs(self.dual_weights) "gt" 1.0e-4

    # 3. mask supp vecs
    self.supp_X = X[sv_mask]
    self.supp_y = y[sv_mask]

    # 4. mask weights
    self.dual_weights = self.dual_weights[sv_mask]

    return self

  # ---------------------------------------------------------

  def predict(self, X):
    K = self.kernel_matrix(X, self.supp_X)
    return np.dot(K, self.dual_weights) + self.b

  # ---------------------------------------------------------

  # def get_supp_idxs(self):
  #   TODO  result = []
  #   return result

# ===========================================================

def main():
  print("\nBegin scratch Python SVR using SMO training ")

  ## quick sanity check
  # np.random.seed(0)
  # n_samples = 40; n_features = 4
  # X = np.random.randn(n_samples, n_features)
  # weights = np.array([0.2, -0.5, 0.3,  0.1])
  # bias = 0.45
  # y = X @ weights + bias + np.random.randn(n_samples)

  # print("\nX = "); print(X[0:3,:]); print(" . . . ")
  # print("\ny = "); print(y[0:3], end=""); print(" . . . ")

  # model = KernelSVR(gamma=0.50, epsilon=0.01, C=1.0,
  #   max_iter=20, tol=1.0e-5)
  # model.fit(X, y)

  # MSE = mse(model, X, y)
  # print("\nModel MSE = %0.4f " % MSE)

  print("\nLoading synthetic train (200) and test (40) data")
  train_Xy = np.loadtxt(".\\Data\\synthetic_train_200.txt",
    usecols=[0,1,2,3,4,5], delimiter=",")
  train_X = train_Xy[:,[0,1,2,3,4]]
  train_y = train_Xy[:,5]

  test_Xy = np.loadtxt(".\\Data\\synthetic_test_40.txt",
    usecols=[0,1,2,3,4,5], delimiter=",")
  test_X = test_Xy[:,[0,1,2,3,4]]
  test_y = test_Xy[:,5]
  print("Done ")

  print("\nFirst three train X: ")
  for i in range(3):
    print(train_X[i])
  print("\nFirst three train y: ")
  for i in range(3):
    print("%0.4f " % train_y[i])

  # ** SCIKIT results **
  # Setting gamma = 0.3000
  # Setting C = 1.0
  # Setting epsilon = 0.0010
  # Number model support vectors: [184]
  # Model bias: 0.4063
  # Train accuracy (0.10) = 0.9850
  # Test accuracy (0.10) = 0.9500
  # Train MSE = 0.0000
  # Test MSE = 0.0002
  # Train R2 = 0.9988
  # Test R2 = 0.9930

  # create and train model
  print("\nCreating SVR-SMO model ")
  gamma = 0.20
  epsilon = 0.0325
  C = 1.0
  max_iter = 100  # max number iter with no improve
  tol = 1.0e-3

  print("Setting gamma = %0.4f " % gamma)
  print("Setting C = %0.2f " % C)
  print("Setting epsilon = %0.4f " % epsilon)
  print("Setting max_iter = " + str(max_iter))
  print("Setting tol = %0.6f " % tol)

  print("\nCreating and training SVR model using SMO ")

  model = KernelSVR(gamma=gamma, epsilon=epsilon, C=C,
    max_iter=max_iter, tol=tol)

  model.fit(train_X, train_y)
  print("Done ")

  # print("\nModel alpha: ")
  # print(model.alpha)
  # print("\nModel alpha*: ")
  # print(model.alpha_star)

  print("\nModel dual coefs: ")
  print(model.dual_weights)

  print("\nModel bias = %0.4f " % model.b)

  supp_vec_idxs = model.get_supp_idxs()
  print("\nNumber support vectors = " + \
    str(len(model.dual_weights)))

  acc_train = accuracy(model, train_X, train_y, 0.10)
  print("\nTrain accuracy (0.10) = %0.4f" % acc_train)
  acc_test = accuracy(model, test_X, test_y, 0.10)
  print("Test accuracy (0.10) = %0.4f" % acc_test)

  mse_train = mse(model, train_X, train_y)
  print("\nTrain MSE = %0.4f" % mse_train)
  mse_test = mse(model, test_X, test_y)
  print("Test MSE = %0.4f" % mse_test)

  r2_train = r2_score(model, train_X, train_y)
  print("\nTrain R2 = %0.4f" % r2_train)
  r2_test = r2_score(model, test_X, test_y)
  print("Test R2 = %0.4f" % r2_test)

  print("\nPredicting for train_X[0] ")
  x = train_X[0].reshape(1,-1)
  pred_y = model.predict(x)[0]
  print("Predicted y = %0.4f " % pred_y)

  print("\nEnd demo ")

# -----------------------------------------------------------

if __name__ == "__main__":
  main()

Training data:

# synthetic_train_200.txt
#
-0.1660,  0.4406, -0.9998, -0.3953, -0.7065,  0.4840
 0.0776, -0.1616,  0.3704, -0.5911,  0.7562,  0.1568
-0.9452,  0.3409, -0.1654,  0.1174, -0.7192,  0.8054
 0.9365, -0.3732,  0.3846,  0.7528,  0.7892,  0.1345
-0.8299, -0.9219, -0.6603,  0.7563, -0.8033,  0.7955
 0.0663,  0.3838, -0.3690,  0.3730,  0.6693,  0.3206
-0.9634,  0.5003,  0.9777,  0.4963, -0.4391,  0.7377
-0.1042,  0.8172, -0.4128, -0.4244, -0.7399,  0.4801
-0.9613,  0.3577, -0.5767, -0.4689, -0.0169,  0.6861
-0.7065,  0.1786,  0.3995, -0.7953, -0.1719,  0.5569
 0.3888, -0.1716, -0.9001,  0.0718,  0.3276,  0.2500
 0.1731,  0.8068, -0.7251, -0.7214,  0.6148,  0.3297
-0.2046, -0.6693,  0.8550, -0.3045,  0.5016,  0.2129
 0.2473,  0.5019, -0.3022, -0.4601,  0.7918,  0.2613
-0.1438,  0.9297,  0.3269,  0.2434, -0.7705,  0.5171
 0.1568, -0.1837, -0.5259,  0.8068,  0.1474,  0.3307
-0.9943,  0.2343, -0.3467,  0.0541,  0.7719,  0.5581
 0.2467, -0.9684,  0.8589,  0.3818,  0.9946,  0.1092
-0.6553, -0.7257,  0.8652,  0.3936, -0.8680,  0.7018
 0.8460,  0.4230, -0.7515, -0.9602, -0.9476,  0.1996
-0.9434, -0.5076,  0.7201,  0.0777,  0.1056,  0.5664
 0.9392,  0.1221, -0.9627,  0.6013, -0.5341,  0.1533
 0.6142, -0.2243,  0.7271,  0.4942,  0.1125,  0.1661
 0.4260,  0.1194, -0.9749, -0.8561,  0.9346,  0.2230
 0.1362, -0.5934, -0.4953,  0.4877, -0.6091,  0.3810
 0.6937, -0.5203, -0.0125,  0.2399,  0.6580,  0.1460
-0.6864, -0.9628, -0.8600, -0.0273,  0.2127,  0.5387
 0.9772,  0.1595, -0.2397,  0.1019,  0.4907,  0.1611
 0.3385, -0.4702, -0.8673, -0.2598,  0.2594,  0.2270
-0.8669, -0.4794,  0.6095, -0.6131,  0.2789,  0.4700
 0.0493,  0.8496, -0.4734, -0.8681,  0.4701,  0.3516
 0.8639, -0.9721, -0.5313,  0.2336,  0.8980,  0.1412
 0.9004,  0.1133,  0.8312,  0.2831, -0.2200,  0.1782
 0.0991,  0.8524,  0.8375, -0.2102,  0.9265,  0.2150
-0.6521, -0.7473, -0.7298,  0.0113, -0.9570,  0.7422
 0.6190, -0.3105,  0.8802,  0.1640,  0.7577,  0.1056
 0.6895,  0.8108, -0.0802,  0.0927,  0.5972,  0.2214
 0.1982, -0.9689,  0.1870, -0.1326,  0.6147,  0.1310
-0.3695,  0.7858,  0.1557, -0.6320,  0.5759,  0.3773
-0.1596,  0.3581,  0.8372, -0.9992,  0.9535,  0.2071
-0.2468,  0.9476,  0.2094,  0.6577,  0.1494,  0.4132
 0.1737,  0.5000,  0.7166,  0.5102,  0.3961,  0.2611
 0.7290, -0.3546,  0.3416, -0.0983, -0.2358,  0.1332
-0.3652,  0.2438, -0.1395,  0.9476,  0.3556,  0.4170
-0.6029, -0.1466, -0.3133,  0.5953,  0.7600,  0.4334
-0.4596, -0.4953,  0.7098,  0.0554,  0.6043,  0.2775
 0.1450,  0.4663,  0.0380,  0.5418,  0.1377,  0.2931
-0.8636, -0.2442, -0.8407,  0.9656, -0.6368,  0.7429
 0.6237,  0.7499,  0.3768,  0.1390, -0.6781,  0.2185
-0.5499,  0.1850, -0.3755,  0.8326,  0.8193,  0.4399
-0.4858, -0.7782, -0.6141, -0.0008,  0.4572,  0.4197
 0.7033, -0.1683,  0.2334, -0.5327, -0.7961,  0.1776
 0.0317, -0.0457, -0.6947,  0.2436,  0.0880,  0.3345
 0.5031, -0.5559,  0.0387,  0.5706, -0.9553,  0.3107
-0.3513,  0.7458,  0.6894,  0.0769,  0.7332,  0.3170
 0.2205,  0.5992, -0.9309,  0.5405,  0.4635,  0.3532
-0.4806, -0.4859,  0.2646, -0.3094,  0.5932,  0.3202
 0.9809, -0.3995, -0.7140,  0.8026,  0.0831,  0.1600
 0.9495,  0.2732,  0.9878,  0.0921,  0.0529,  0.1289
-0.9476, -0.6792,  0.4913, -0.9392, -0.2669,  0.5966
 0.7247,  0.3854,  0.3819, -0.6227, -0.1162,  0.1550
-0.5922, -0.5045, -0.4757,  0.5003, -0.0860,  0.5863
-0.8861,  0.0170, -0.5761,  0.5972, -0.4053,  0.7301
 0.6877, -0.2380,  0.4997,  0.0223,  0.0819,  0.1404
 0.9189,  0.6079, -0.9354,  0.4188, -0.0700,  0.1907
-0.1428, -0.7820,  0.2676,  0.6059,  0.3936,  0.2790
 0.5324, -0.3151,  0.6917, -0.1425,  0.6480,  0.1071
-0.8432, -0.9633, -0.8666, -0.0828, -0.7733,  0.7784
-0.9444,  0.5097, -0.2103,  0.4939, -0.0952,  0.6787
-0.0520,  0.6063, -0.1952,  0.8094, -0.9259,  0.4836
 0.5477, -0.7487,  0.2370, -0.9793,  0.0773,  0.1241
 0.2450,  0.8116,  0.9799,  0.4222,  0.4636,  0.2355
 0.8186, -0.1983, -0.5003, -0.6531, -0.7611,  0.1511
-0.4714,  0.6382, -0.3788,  0.9648, -0.4667,  0.5950
 0.0673, -0.3711,  0.8215, -0.2669, -0.1328,  0.2677
-0.9381,  0.4338,  0.7820, -0.9454,  0.0441,  0.5518
-0.3480,  0.7190,  0.1170,  0.3805, -0.0943,  0.4724
-0.9813,  0.1535, -0.3771,  0.0345,  0.8328,  0.5438
-0.1471, -0.5052, -0.2574,  0.8637,  0.8737,  0.3042
-0.5454, -0.3712, -0.6505,  0.2142, -0.1728,  0.5783
 0.6327, -0.6297,  0.4038, -0.5193,  0.1484,  0.1153
-0.5424,  0.3282, -0.0055,  0.0380, -0.6506,  0.6613
 0.1414,  0.9935,  0.6337,  0.1887,  0.9520,  0.2540
-0.9351, -0.8128, -0.8693, -0.0965, -0.2491,  0.7353
 0.9507, -0.6640,  0.9456,  0.5349,  0.6485,  0.1059
-0.0462, -0.9737, -0.2940, -0.0159,  0.4602,  0.2606
-0.0627, -0.0852, -0.7247, -0.9782,  0.5166,  0.2977
 0.0478,  0.5098, -0.0723, -0.7504, -0.3750,  0.3335
 0.0090,  0.3477,  0.5403, -0.7393, -0.9542,  0.4415
-0.9748,  0.3449,  0.3736, -0.1015,  0.8296,  0.4358
 0.2887, -0.9895, -0.0311,  0.7186,  0.6608,  0.2057
 0.1570, -0.4518,  0.1211,  0.3435, -0.2951,  0.3244
 0.7117, -0.6099,  0.4946, -0.4208,  0.5476,  0.1096
-0.2929, -0.5726,  0.5346, -0.3827,  0.4665,  0.2465
 0.4889, -0.5572, -0.5718, -0.6021, -0.7150,  0.2163
-0.7782,  0.3491,  0.5996, -0.8389, -0.5366,  0.6516
-0.5847,  0.8347,  0.4226,  0.1078, -0.3910,  0.6134
 0.8469,  0.4121, -0.0439, -0.7476,  0.9521,  0.1571
-0.6803, -0.5948, -0.1376, -0.1916, -0.7065,  0.7156
 0.2878,  0.5086, -0.5785,  0.2019,  0.4979,  0.2980
 0.2764,  0.1943, -0.4090,  0.4632,  0.8906,  0.2960
-0.8877,  0.6705, -0.6155, -0.2098, -0.3998,  0.7107
-0.8398,  0.8093, -0.2597,  0.0614, -0.0118,  0.6502
-0.8476,  0.0158, -0.4769, -0.2859, -0.7839,  0.7715
 0.5751, -0.7868,  0.9714, -0.6457,  0.1448,  0.1175
 0.4802, -0.7001,  0.1022, -0.5668,  0.5184,  0.1090
 0.4458, -0.6469,  0.7239, -0.9604,  0.7205,  0.0779
 0.5175,  0.4339,  0.9747, -0.4438, -0.9924,  0.2879
 0.8678,  0.7158,  0.4577,  0.0334,  0.4139,  0.1678
 0.5406,  0.5012,  0.2264, -0.1963,  0.3946,  0.2088
-0.9938,  0.5498,  0.7928, -0.5214, -0.7585,  0.7687
 0.7661,  0.0863, -0.4266, -0.7233, -0.4197,  0.1466
 0.2277, -0.3517, -0.0853, -0.1118,  0.6563,  0.1767
 0.3499, -0.5570, -0.0655, -0.3705,  0.2537,  0.1632
 0.7547, -0.1046,  0.5689, -0.0861,  0.3125,  0.1257
 0.8186,  0.2110,  0.5335,  0.0094, -0.0039,  0.1391
 0.6858, -0.8644,  0.1465,  0.8855,  0.0357,  0.1845
-0.4967,  0.4015,  0.0805,  0.8977,  0.2487,  0.4663
 0.6760, -0.9841,  0.9787, -0.8446, -0.3557,  0.1509
-0.1203, -0.4885,  0.6054, -0.0443, -0.7313,  0.4854
 0.8557,  0.7919, -0.0169,  0.7134, -0.1628,  0.2002
 0.0115, -0.6209,  0.9300, -0.4116, -0.7931,  0.4052
-0.7114, -0.9718,  0.4319,  0.1290,  0.5892,  0.3661
 0.3915,  0.5557, -0.1870,  0.2955, -0.6404,  0.2954
-0.3564, -0.6548, -0.1827, -0.5172, -0.1862,  0.4622
 0.2392, -0.4959,  0.5857, -0.1341, -0.2850,  0.2470
-0.3394,  0.3947, -0.4627,  0.6166, -0.4094,  0.5325
 0.7107,  0.7768, -0.6312,  0.1707,  0.7964,  0.2757
-0.1078,  0.8437, -0.4420,  0.2177,  0.3649,  0.4028
-0.3139,  0.5595, -0.6505, -0.3161, -0.7108,  0.5546
 0.4335,  0.3986,  0.3770, -0.4932,  0.3847,  0.1810
-0.2562, -0.2894, -0.8847,  0.2633,  0.4146,  0.4036
 0.2272,  0.2966, -0.6601, -0.7011,  0.0284,  0.2778
-0.0743, -0.1421, -0.0054, -0.6770, -0.3151,  0.3597
-0.4762,  0.6891,  0.6007, -0.1467,  0.2140,  0.4266
-0.4061,  0.7193,  0.3432,  0.2669, -0.7505,  0.6147
-0.0588,  0.9731,  0.8966,  0.2902, -0.6966,  0.4955
-0.0627, -0.1439,  0.1985,  0.6999,  0.5022,  0.3077
 0.1587,  0.8494, -0.8705,  0.9827, -0.8940,  0.4263
-0.7850,  0.2473, -0.9040, -0.4308, -0.8779,  0.7199
 0.4070,  0.3369, -0.2428, -0.6236,  0.4940,  0.2215
-0.0242,  0.0513, -0.9430,  0.2885, -0.2987,  0.3947
-0.5416, -0.1322, -0.2351, -0.0604,  0.9590,  0.3683
 0.1055,  0.7783, -0.2901, -0.5090,  0.8220,  0.2984
-0.9129,  0.9015,  0.1128, -0.2473,  0.9901,  0.4776
-0.9378,  0.1424, -0.6391,  0.2619,  0.9618,  0.5368
 0.7498, -0.0963,  0.4169,  0.5549, -0.0103,  0.1614
-0.2612, -0.7156,  0.4538, -0.0460, -0.1022,  0.3717
 0.7720,  0.0552, -0.1818, -0.4622, -0.8560,  0.1685
-0.4177,  0.0070,  0.9319, -0.7812,  0.3461,  0.3052
-0.0001,  0.5542, -0.7128, -0.8336, -0.2016,  0.3803
 0.5356, -0.4194, -0.5662, -0.9666, -0.2027,  0.1776
-0.2378,  0.3187, -0.8582, -0.6948, -0.9668,  0.5474
-0.1947, -0.3579,  0.1158,  0.9869,  0.6690,  0.2992
 0.3992,  0.8365, -0.9205, -0.8593, -0.0520,  0.3154
-0.0209,  0.0793,  0.7905, -0.1067,  0.7541,  0.1864
-0.4928, -0.4524, -0.3433,  0.0951, -0.5597,  0.6261
-0.8118,  0.7404, -0.5263, -0.2280,  0.1431,  0.6349
 0.0516, -0.8480,  0.7483,  0.9023,  0.6250,  0.1959
-0.3212,  0.1093,  0.9488, -0.3766,  0.3376,  0.2735
-0.3481,  0.5490, -0.3484,  0.7797,  0.5034,  0.4379
-0.5785, -0.9170, -0.3563, -0.9258,  0.3877,  0.4121
 0.3407, -0.1391,  0.5356,  0.0720, -0.9203,  0.3458
-0.3287, -0.8954,  0.2102,  0.0241,  0.2349,  0.3247
-0.1353,  0.6954, -0.0919, -0.9692,  0.7461,  0.3338
 0.9036, -0.8982, -0.5299, -0.8733, -0.1567,  0.1187
 0.7277, -0.8368, -0.0538, -0.7489,  0.5458,  0.0830
 0.9049,  0.8878,  0.2279,  0.9470, -0.3103,  0.2194
 0.7957, -0.1308, -0.5284,  0.8817,  0.3684,  0.2172
 0.4647, -0.4931,  0.2010,  0.6292, -0.8918,  0.3371
-0.7390,  0.6849,  0.2367,  0.0626, -0.5034,  0.7039
-0.1567, -0.8711,  0.7940, -0.5932,  0.6525,  0.1710
 0.7635, -0.0265,  0.1969,  0.0545,  0.2496,  0.1445
 0.7675,  0.1354, -0.7698, -0.5460,  0.1920,  0.1728
-0.5211, -0.7372, -0.6763,  0.6897,  0.2044,  0.5217
 0.1913,  0.1980,  0.2314, -0.8816,  0.5006,  0.1998
 0.8964,  0.0694, -0.6149,  0.5059, -0.9854,  0.1825
 0.1767,  0.7104,  0.2093,  0.6452,  0.7590,  0.2832
-0.3580, -0.7541,  0.4426, -0.1193, -0.7465,  0.5657
-0.5996,  0.5766, -0.9758, -0.3933, -0.9572,  0.6800
 0.9950,  0.1641, -0.4132,  0.8579,  0.0142,  0.2003
-0.4717, -0.3894, -0.2567, -0.5111,  0.1691,  0.4266
 0.3917, -0.8561,  0.9422,  0.5061,  0.6123,  0.1212
-0.0366, -0.1087,  0.3449, -0.1025,  0.4086,  0.2475
 0.3633,  0.3943,  0.2372, -0.6980,  0.5216,  0.1925
-0.5325, -0.6466, -0.2178, -0.3589,  0.6310,  0.3568
 0.2271,  0.5200, -0.1447, -0.8011, -0.7699,  0.3128
 0.6415,  0.1993,  0.3777, -0.0178, -0.8237,  0.2181
-0.5298, -0.0768, -0.6028, -0.9490,  0.4588,  0.4356
 0.6870, -0.1431,  0.7294,  0.3141,  0.1621,  0.1632
-0.5985,  0.0591,  0.7889, -0.3900,  0.7419,  0.2945
 0.3661,  0.7984, -0.8486,  0.7572, -0.6183,  0.3449
 0.6995,  0.3342, -0.3113, -0.6972,  0.2707,  0.1712
 0.2565,  0.9126,  0.1798, -0.6043, -0.1413,  0.2893
-0.3265,  0.9839, -0.2395,  0.9854,  0.0376,  0.4770
 0.2690, -0.1722,  0.9818,  0.8599, -0.7015,  0.3954
-0.2102, -0.0768,  0.1219,  0.5607, -0.0256,  0.3949
 0.8216, -0.9555,  0.6422, -0.6231,  0.3715,  0.0801
-0.2896,  0.9484, -0.7545, -0.6249,  0.7789,  0.4370
-0.9985, -0.5448, -0.7092, -0.5931,  0.7926,  0.5402

Test data:

# synthetic_test_40.txt
#
 0.7462,  0.4006, -0.0590,  0.6543, -0.0083,  0.1935
 0.8495, -0.2260, -0.0142, -0.4911,  0.7699,  0.1078
-0.2335, -0.4049,  0.4352, -0.6183, -0.7636,  0.5088
 0.1810, -0.5142,  0.2465,  0.2767, -0.3449,  0.3136
-0.8650,  0.7611, -0.0801,  0.5277, -0.4922,  0.7140
-0.2358, -0.7466, -0.5115, -0.8413, -0.3943,  0.4533
 0.4834,  0.2300,  0.3448, -0.9832,  0.3568,  0.1360
-0.6502, -0.6300,  0.6885,  0.9652,  0.8275,  0.3046
-0.3053,  0.5604,  0.0929,  0.6329, -0.0325,  0.4756
-0.7995,  0.0740, -0.2680,  0.2086,  0.9176,  0.4565
-0.2144, -0.2141,  0.5813,  0.2902, -0.2122,  0.4119
-0.7278, -0.0987, -0.3312, -0.5641,  0.8515,  0.4438
 0.3793,  0.1976,  0.4933,  0.0839,  0.4011,  0.1905
-0.8568,  0.9573, -0.5272,  0.3212, -0.8207,  0.7415
-0.5785,  0.0056, -0.7901, -0.2223,  0.0760,  0.5551
 0.0735, -0.2188,  0.3925,  0.3570,  0.3746,  0.2191
 0.1230, -0.2838,  0.2262,  0.8715,  0.1938,  0.2878
 0.4792, -0.9248,  0.5295,  0.0366, -0.9894,  0.3149
-0.4456,  0.0697,  0.5359, -0.8938,  0.0981,  0.3879
 0.8629, -0.8505, -0.4464,  0.8385,  0.5300,  0.1769
 0.1995,  0.6659,  0.7921,  0.9454,  0.9970,  0.2330
-0.0249, -0.3066, -0.2927, -0.4923,  0.8220,  0.2437
 0.4513, -0.9481, -0.0770, -0.4374, -0.9421,  0.2879
-0.3405,  0.5931, -0.3507, -0.3842,  0.8562,  0.3987
 0.9538,  0.0471,  0.9039,  0.7760,  0.0361,  0.1706
-0.0887,  0.2104,  0.9808,  0.5478, -0.3314,  0.4128
-0.8220, -0.6302,  0.0537, -0.1658,  0.6013,  0.4306
-0.4123, -0.2880,  0.9074, -0.0461, -0.4435,  0.5144
 0.0060,  0.2867, -0.7775,  0.5161,  0.7039,  0.3599
-0.7968, -0.5484,  0.9426, -0.4308,  0.8148,  0.2979
 0.7811,  0.8450, -0.6877,  0.7594,  0.2640,  0.2362
-0.6802, -0.1113, -0.8325, -0.6694, -0.6056,  0.6544
 0.3821,  0.1476,  0.7466, -0.5107,  0.2592,  0.1648
 0.7265,  0.9683, -0.9803, -0.4943, -0.5523,  0.2454
-0.9049, -0.9797, -0.0196, -0.9090, -0.4433,  0.6447
-0.4607,  0.1811, -0.2389,  0.4050, -0.0078,  0.5229
 0.2664, -0.2932, -0.4259, -0.7336,  0.8742,  0.1834
-0.4507,  0.1029, -0.6294, -0.1158, -0.6294,  0.6081
 0.8948, -0.0124,  0.9278,  0.2899, -0.0314,  0.1534
-0.1323, -0.8813, -0.0146, -0.0697,  0.6135,  0.2386
