Demonstrating Why AdaBoost.R2 Regression Almost Always Uses Decision Tree Learners

AdaBoost.R2 (“adaptive boosting regression, version 2”) is a technique to predict a single numeric value. AdaBoost works by creating a collection of simple decision trees. The final prediction is the average of all the tree predictions.

Each tree is trained on a different subset of the source training data. Each subset is constructed based on the results of the predictions of the previous tree, so that data items that were incorrectly predicted are more likely to be in the new subset. This makes the tree concentrate on difficult-to-predict items.

In theory, AdaBoost can use any kind of simple regressor as the base learners, not just decision trees. But in practice, only decision trees are used — paradoxically because they are so weak.

If you use a strong learner, or a learner that is stable with regards to changes in the source dataset, then each learner in the AdaBoost collection is essentially training on the same data.

I knew all this, but one afternoon I sat down and implemented AdaBoost systems using linear regression (too stable), nearest neighbors regression (too sensitive to noise), and kernel ridge regression (too much global smoothness), and as theory predicted, the prediction accuracy of the three versions of AdaBoost was poor.

I search the Internet and found no examples of using Adaboost regression with quadratic regression (QR). So I put together a demo. QR is sort of an enhanced linear regression that handles interactions between predictor variables. To my great surprise, the AdaBoost with quadratic regression technique worked surprisingly well:

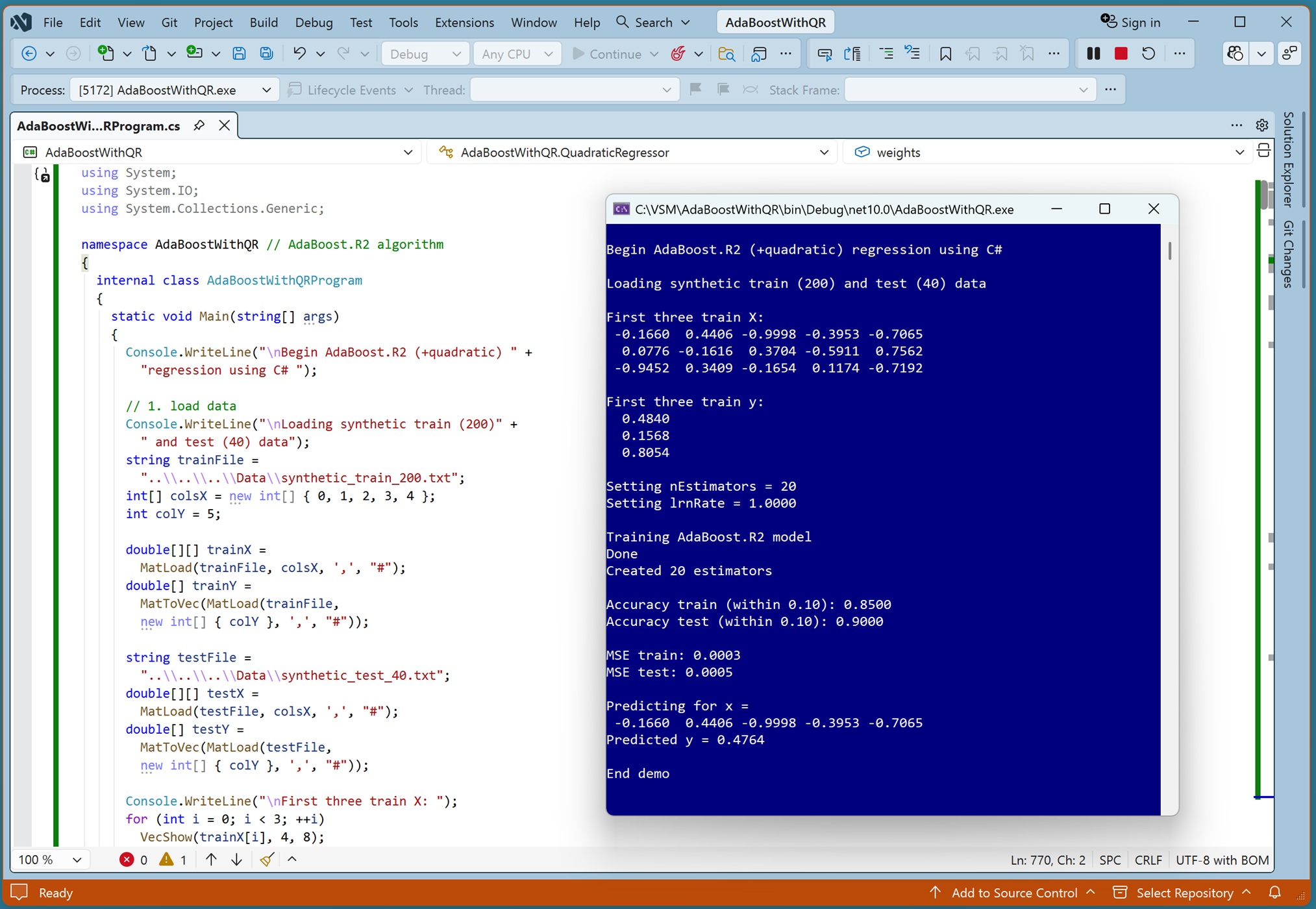

Begin AdaBoost.R2 (+quadratic) regression using C#

Loading synthetic train (200) and test (40) data

First three train X:
 -0.1660  0.4406 -0.9998 -0.3953 -0.7065
  0.0776 -0.1616  0.3704 -0.5911  0.7562
 -0.9452  0.3409 -0.1654  0.1174 -0.7192

First three train y:
  0.4840
  0.1568
  0.8054

Setting nEstimators = 20
Setting lrnRate = 1.0000

Training AdaBoost.R2 model
Done
Created 20 estimators

Accuracy train (within 0.10): 0.8500
Accuracy test (within 0.10): 0.9000

MSE train: 0.0003
MSE test: 0.0005

Predicting for x =
 -0.1660  0.4406 -0.9998 -0.3953 -0.7065
Predicted y = 0.4764

End demo

I speculate that the synthetic datset I used hit a sweet spot for AdaBoost with QR. Put another way, quadratic programming is slightly better and slightly less stable than linear regression, but slightly worse and slightly less smooth than kernel ridge regression, and so QR worked nicely as an AdaBoost regression base learner.

An interesting experiment!



There’s a certain irony that decision tree regressors work so well as Adaboost.R2 learners because they predict so weakly.

Here are two examples of transportation-related irony.

Left: I’m hoping that this township has more than one “Collision Investigation” cars.

Right: It took me a moment to appreciate the irony of this row of Domino’s Pizza delivery scooters that toppled over one after the other.


Demo program. Replace “lt” (less than), “gt”, “lte”, “gte”, “lte” with Boolean operator symbols (my blog editor chikes on symbols).

using System;
using System.IO;
using System.Collections.Generic;

namespace AdaBoostWithQR // AdaBoost.R2 algorithm
{
  internal class AdaBoostWithQRProgram
  {
    static void Main(string[] args)
    {
      Console.WriteLine("\nBegin AdaBoost.R2 (+quadratic) " +
        "regression using C# ");

      // 1. load data
      Console.WriteLine("\nLoading synthetic train (200)" +
        " and test (40) data");
      string trainFile =
        "..\\..\\..\\Data\\synthetic_train_200.txt";
      int[] colsX = new int[] { 0, 1, 2, 3, 4 };
      int colY = 5;

      double[][] trainX =
        MatLoad(trainFile, colsX, ',', "#");
      double[] trainY =
        MatToVec(MatLoad(trainFile,
        new int[] { colY }, ',', "#"));

      string testFile =
        "..\\..\\..\\Data\\synthetic_test_40.txt";
      double[][] testX =
        MatLoad(testFile, colsX, ',', "#");
      double[] testY =
        MatToVec(MatLoad(testFile,
        new int[] { colY }, ',', "#"));

      Console.WriteLine("\nFirst three train X: ");
      for (int i = 0; i "lt" 3; ++i)
        VecShow(trainX[i], 4, 8);

      Console.WriteLine("\nFirst three train y: ");
      for (int i = 0; i "lt" 3; ++i)
        Console.WriteLine(trainY[i].ToString("F4").
          PadLeft(8));

      // 2. create and train model
      int nEstimators = 20;
      double lrnRate = 1.00; // AdaBoost regularizer
      Console.WriteLine("\nSetting nEstimators = " +
        nEstimators);
      Console.WriteLine("Setting lrnRate = " +
        lrnRate.ToString("F4"));

      Console.WriteLine("\nTraining AdaBoost.R2 model ");
      AdaBoostRegressor model =
        new AdaBoostRegressor(nEstimators, "linear",
        lrnRate, 0);
      model.Train(trainX, trainY);
      Console.WriteLine("Done ");
      Console.WriteLine("Created " +
        model.estimators.Count + " estimators ");

      // 3. evaluate model
      double accTrain = model.Accuracy(trainX, trainY, 0.10);
      Console.WriteLine("\nAccuracy train (within 0.10): " +
        accTrain.ToString("F4"));
      double accTest = model.Accuracy(testX, testY, 0.10);
      Console.WriteLine("Accuracy test (within 0.10): " +
        accTest.ToString("F4"));

      double mseTrain = model.MSE(trainX, trainY);
      Console.WriteLine("\nMSE train: " +
        mseTrain.ToString("F4"));
      double mseTest = model.MSE(testX, testY);
      Console.WriteLine("MSE test: " +
        mseTest.ToString("F4"));

      // 4. use model to make a prediction
      double[] x = trainX[0];
      Console.WriteLine("\nPredicting for x = ");
      VecShow(x, 4, 8);
      double yPred = model.Predict(x);
      Console.WriteLine("Predicted y = " +
        yPred.ToString("F4"));

      Console.WriteLine("\nEnd demo ");
      Console.ReadLine();
    } // Main()

    // ------------------------------------------------------
    // helpers for Main():
    //   MatLoad(), MatToVec(), VecShow().
    // ------------------------------------------------------

    static double[][] MatLoad(string fn, int[] usecols,
      char sep, string comment)
    {
      List"lt"double[]"gte" result =
        new List"lt"double[]"gte"();
      string line = "";
      FileStream ifs = new FileStream(fn, FileMode.Open);
      StreamReader sr = new StreamReader(ifs);
      while ((line = sr.ReadLine()) != null)
      {
        if (line.StartsWith(comment) == true)
          continue;
        string[] tokens = line.Split(sep);
        List"lt"double"gte" lst = new List"lt"double"gte"();
        for (int j = 0; j "lt" usecols.Length; ++j)
          lst.Add(double.Parse(tokens[usecols[j]]));
        double[] row = lst.ToArray();
        result.Add(row);
      }
      sr.Close(); ifs.Close();
      return result.ToArray();
    }

    static double[] MatToVec(double[][] M)
    {
      int nRows = M.Length;
      int nCols = M[0].Length;
      double[] result = new double[nRows * nCols];
      int k = 0;
      for (int i = 0; i "lt" nRows; ++i)
        for (int j = 0; j "lt" nCols; ++j)
          result[k++] = M[i][j];
      return result;
    }

    static void VecShow(double[] vec, int dec, int wid)
    {
      for (int i = 0; i "lt" vec.Length; ++i)
        Console.Write(vec[i].ToString("F" + dec).
          PadLeft(wid));
      Console.WriteLine("");
    }

  } // class Program

  // ========================================================

  class AdaBoostRegressor
  {
    public int nEstimators;  // aka nLearners
    public string lossType;
    public double lrnRate;  // AdaBoost

    public List"lt"QuadraticRegressor"gte" estimators;
    public List"lt"double"gte" estimatorWeights; // aka alphas
    private Random rnd;

    public AdaBoostRegressor(int nEstimators,
      string lossType, double lrnRate,
      int seed)
    {
      this.nEstimators = nEstimators; // aka learners
      this.lossType = lossType;
      this.lrnRate = lrnRate;
      this.rnd = new Random(seed);
      this.estimators = new List"lt"QuadraticRegressor"gte"();
      this.estimatorWeights = new List"lt"double"gte"();
    }

    // ------------------------------------------------------

    public void Train(double[][] trainX, double[] trainY)
    {
      int nSamples = trainX.Length;

      // 1. initialize uniform sample weights
      double[] weights = new double[nSamples];
      for (int i = 0; i "lt" nSamples; ++i)
        weights[i] = 1.0 / nSamples;

      for (int t = 0; t "lt" this.nEstimators; ++t)
      {
        // normalize weights
        double sumW = 0.0;
        for (int i = 0; i "lt" nSamples; ++i)
          sumW += weights[i];

        double[] wNormed = new double[nSamples];
        for (int i = 0; i "lt" nSamples; ++i)
          wNormed[i] = weights[i] / sumW;

        // draw weighted bootstrap sample using
        // normalized probabilities
        int[] sampleIndices =
          this.MyChoice(nSamples, nSamples, wNormed);

        // get train data subsets
        int nFeatures = trainX[0].Length;
        double[][] subsetX = MatMake(nSamples, nFeatures);
        double[] ySubset = new double[nSamples];

        for (int i = 0; i "lt" nSamples; ++i)
        {
          int idx = sampleIndices[i];
          ySubset[i] = trainY[idx];
          for (int j = 0; j "lt" nFeatures; ++j)
          {
            subsetX[i][j] = trainX[idx][j];
          }
        }

        // 3. train base KRR on the bootstrap subset
        int qrSeed = this.rnd.Next(0, 1_000_000);
        QuadraticRegressor qr =
          new QuadraticRegressor(qrSeed);
        qr.Train(subsetX, ySubset);

        // compute all predictions on full trainX
        double[] preds = new double[nSamples];
        for (int i = 0; i "lt" nSamples; ++i)
          preds[i] = qr.Predict(trainX[i]);

        // absolute errors and max error
        double[] errors = new double[nSamples];
        double maxError = 1.0e-10; // avoid div by zero
        for (int i = 0; i "lt" nSamples; ++i)
        {
          errors[i] = Math.Abs(preds[i] - trainY[i]);
          if (errors[i] "gte" maxError)
            maxError = errors[i];
        }

        // 5. compute specific loss type
        double[] tLoss = new double[nSamples];
        double eNorm;
        for (int i = 0; i "lt" nSamples; ++i)
        {
          eNorm = errors[i] / maxError; // normed error
          if (this.lossType == "linear")
            tLoss[i] = eNorm;
          else if (this.lossType == "square")
            tLoss[i] = eNorm * eNorm;
          else
            throw new Exception("unknown loss type ");
        }

        // 6. calculate average weighted error
        double avgError = 0.0;
        for (int i = 0; i "lt" nSamples; ++i)
          avgError += (wNormed[i] * tLoss[i]);

        // if base learner is worse than random guessing,
        // stop boosting

        if (avgError "gte" 0.5)
        {
          if (t == 0)  // first estimator/learner
          {
            this.estimators.Add(qr);
            this.estimatorWeights.Add(1.0e-10);
          }
          break;
        }

        // 7. estimator confidence beta and alpha
        double beta = avgError / (1.0 - avgError);
        if (beta == 0.0) beta = 1.0e-10;

        // moderate estimatorWeights using lrnRate
        double alpha = Math.Log(1.0 / beta);
        this.estimators.Add(qr);
        this.estimatorWeights.Add(this.lrnRate * alpha);

        // 8. update sample weights
        for (int i = 0; i "lt" nSamples; ++i)
        {
          double exp = (1.0 - tLoss[i]);
          double tmp = Math.Pow(beta, exp);
          weights[i] = wNormed[i] * tmp;
        }
      }
    }

    // ------------------------------------------------------

    private int[] MyChoice(int nItems, int size, double[] p)
    {
      // roulette wheel selection
      // select size ints from [0, nItems) with replacement,
      // using values in vector p as weights

      int[] result = new int[size];

      // compute cumulative distribution function (CDF)
      double[] cdf = new double[nItems];
      double runSum = 0.0;
      for (int i = 0; i "lt" nItems; ++i)
      {
        runSum += p[i];
        cdf[i] = runSum;
      }

      for (int j = 0; j "lt" size; ++j)
      {
        double u = this.rnd.NextDouble();
        int selectedIdx = SearchCdf(cdf, u); // fast
        if (selectedIdx "lt" 0)
          selectedIdx = 0;
        else if (selectedIdx "gte" nItems)
          selectedIdx = nItems - 1;
        result[j] = selectedIdx;
      }

      return result;
    } // MyChoice()

    // ------------------------------------------------------

    private static int SearchCdf(double[] cdf, double target)
    {
      // binary search to isolate the target interval
      int low = 0;
      int high = cdf.Length - 1;

      while (low "lte" high)
      {
        int mid = low + (high - low) / 2;
        if (cdf[mid] "gte" target)
          high = mid - 1;
        else
          low = mid + 1;
      }

      if (low "gte" cdf.Length) // safety
        return cdf.Length - 1;

      return low;
    }

    // ------------------------------------------------------

    private static double[][] MatMake(int nRows, int ncols)
    {
      double[][] result = new double[nRows][];
      for (int i = 0; i "lt" nRows; ++i)
        result[i] = new double[ncols];
      return result;
    }

    // ------------------------------------------------------

    public double Predict(double[] x)
    {
      int nTrees = this.estimators.Count;
      double[] preds = new double[nTrees];
      double[] modelWts = new double[nTrees];

      for (int t = 0; t "lt" nTrees; ++t)
      {
        preds[t] = this.estimators[t].Predict(x);
        modelWts[t] = this.estimatorWeights[t];
      }

      return WeightedMedian(preds, modelWts);
    }

    // ------------------------------------------------------

    public double Accuracy(double[][] dataX, double[] dataY,
      double pctClose)
    {
      int nCorrect = 0; int nWrong = 0;
      for (int i = 0; i "lt" dataX.Length; ++i)
      {
        double predY = this.Predict(dataX[i]);
        double actuaY = dataY[i];
        if (Math.Abs(predY - actuaY) "lt"
          (pctClose * Math.Abs(actuaY)))
          ++nCorrect;
        else
          ++nWrong;
      }
      return (nCorrect * 1.0) / (nCorrect + nWrong);
    }

    // ------------------------------------------------------

    public double MSE(double[][] dataX, double[] dataY)
    {
      int n = dataX.Length;
      double sum = 0.0;
      for (int i = 0; i "lt" n; ++i)
      {
        double actualY = dataY[i];
        double predY = this.Predict(dataX[i]);
        sum += (actualY - predY) * (actualY - predY);
      }
      return sum / n;
    }

    // ------------------------------------------------------
    // helper functions for Predict()
    // ------------------------------------------------------

    private static double WeightedMedian(double[] values,
      double[] weights)
    {
      // no interpolation for even n
      // don't assume weights sum to 1.0
      int n = values.Length;
      double sumWts = 0.0;
      for (int i = 0; i "lt" n; ++i)
        sumWts += weights[i];
      double thresh = sumWts / 2;
      int[] sortedIdxs = ArgSort(values);

      double accum = 0.0;
      for (int j = 0; j "lt" n; ++j)
      {
        accum += weights[sortedIdxs[j]];
        if (accum "gte" thresh)
          return values[sortedIdxs[j]];
      }
      return values[sortedIdxs[n - 1]];
    }

    // helper for WeightedMedian()
    private static int[] ArgSort(double[] values)
    {
      int n = values.Length;
      double[] copy = new double[n];
      int[] indices = new int[n];
      for (int i = 0; i "lt" n; ++i)
      {
        copy[i] = values[i];
        indices[i] = i;
      }
      Array.Sort(copy, indices);  // in parallel
      return indices;
    }

    // ------------------------------------------------------

  } // class AdaBoostRegressor

  // ========================================================

  public class QuadraticRegressor
  {
    public double[] weights;  // regular + quad + interactions
    public double bias;
    private Random rnd;       // for SGD training

    public QuadraticRegressor(int seed = 0)
    {
      this.weights = new double[0];  // keep compiler happy
      this.bias = 0;
      this.rnd = new Random(seed);
    }

    // ------------------------------------------------------

    public double Predict(double[] x)
    {
      int dim = x.Length;
      double result = 0.0;

      int p = 0; // points into this.weights
      for (int i = 0; i "lt" dim; ++i)   // regular
        result += x[i] * this.weights[p++];

      for (int i = 0; i "lt" dim; ++i)  // quadratic
        result += x[i] * x[i] * this.weights[p++];

      for (int i = 0; i "lt" dim - 1; ++i)  // interactions
        for (int j = i + 1; j "lt" dim; ++j)
          result += x[i] * x[j] * this.weights[p++];

      result += this.bias;
      return result;
    }

    // ------------------------------------------------------

    public void Train(double[][] trainX, double[] trainY)
    {
      // train using MP pseudo-inverse via QR-Householder
      // no regulaization
      // w = pinv(designX) * y
      int nRows = trainX.Length; // not used
      int dim = trainX[0].Length;
      int nInteractions = (dim * (dim - 1)) / 2;
      this.weights = new double[dim + dim + nInteractions];

      double[][] Xa = MatAugment(trainX);  // add columns
      double[][] Xd = MatToDesign(Xa);

      double[][] Xpinv = QRHouseholder.MatPinv(Xd);

      double[] biasAndWts = MatVecProd(Xpinv, trainY);
      this.bias = biasAndWts[0];  // bias is at [0]
      for (int i = 1; i "lt" biasAndWts.Length; ++i)
        this.weights[i - 1] = biasAndWts[i];
      return;
    }

    // ------------------------------------------------------

    private static double[][] MatAugment(double[][] trainX)
    {
      // add quadratic and interaction columns
      int nRows = trainX.Length;  // src and dest
      int dim = trainX[0].Length;  // src
      int nInteractions = dim * (dim - 1) / 2;
      int nColsDest = dim + dim + nInteractions;

      double[][] result = new double[nRows][];
      for (int i = 0; i "lt" nRows; i++)
        result[i] = new double[nColsDest];

      for (int i = 0; i "lt" nRows; ++i)
      {
        int p = 0; // points to column of result

        for (int j = 0; j "lt" dim; ++j) // base
          result[i][p++] = trainX[i][j];

        for (int j = 0; j "lt" dim; ++j) // quadratic
          result[i][p++] = trainX[i][j] * trainX[i][j];

        for (int j = 0; j "lt" nInteractions - 1; ++j)
          for (int k = j + 1; k "lt" dim; ++k)
            result[i][p++] = trainX[i][j] * trainX[i][k];
      }

      return result;
    }

    // ------------------------------------------------------

    private static double[][] MatToDesign(double[][] X)
    {
      // add leading column of 1.0s to handle bias term
      int nRows = X.Length;  // src and dest
      int dim = X[0].Length;

      double[][] result = MatMake(nRows, dim + 1);  // note
      for (int i = 0; i "lt" nRows; ++i)
      {
        result[i][0] = 1.0;
        for (int j = 1; j "lt" result[0].Length; ++j)
        {
          result[i][j] = X[i][j - 1];
        }
      }
      return result;
    }

    // ------------------------------------------------------

    private static double[][] MatMake(int nRows, int nCols)
    {
      double[][] result = new double[nRows][];
      for (int i = 0; i "lt" nRows; ++i)
        result[i] = new double[nCols];
      return result;
    }

    // ------------------------------------------------------

    private static double[] MatVecProd(double[][] M,
      double[] v)
    {
      // helper for Train()
      int nRows = M.Length;
      int nCols = M[0].Length;
      int n = v.Length;
      if (nCols != n)
        throw new Exception("non-comform in MatVecProd");

      double[] result = new double[nRows];
      for (int i = 0; i "lt" nRows; ++i)
        for (int k = 0; k "lt" nCols; ++k)
          result[i] += M[i][k] * v[k];

      return result;
    }


  } // class QuadraticRegressor

  // ========================================================

  public class QRHouseholder
  {
    // container for MP pseudo-inverse via QR-Householder
    // A = Q * R
    // pinv(A) = inv(R) * inv(Q)  note order matters
    //         = inv upper tri (easy) * transpose (easy)

    public static double[][] MatPinv(double[][] M)
    {
      double[][] Q; double[][] R;
      MatDecompQR(M, out Q, out R);  // Householder
      double[][] Ri = MatInvUpperTri(R);
      double[][] Qi = MatTranspose(Q);
      double[][] result = MatProduct(Ri, Qi);
      return result;
    }

    // ------------------------------------------------------

    private static void MatDecompQR(double[][] A,
      out double[][] Q, out double[][] R)
    {
      // Householder algorithm
      int m = A.Length; int n = A[0].Length;
      if (m "lt" n)
        Console.WriteLine("FATAL: nRows must be gte nCols");

      double[][] QQ = MatMake(m, m); // working full Q
      for (int i = 0; i "lt" m; ++i)
        QQ[i][i] = 1.0;  // identity matrix

      double[][] RR = MatMake(m, n);
      for (int i = 0; i "lt" m; ++i)
        for (int j = 0; j "lt" n; ++j)
          RR[i][j] = A[i][j]; // copy of A is working R

      int k = Math.Min(m, n);  // or just use n
      for (int j = 0; j "lt" k; ++j) // main processing loop
      {
        int xn = m - j;
        double[] x = new double[xn];
        for (int i = 0; i "lt" xn; ++i)
          x[i] = RR[j + i][j];

        double ss = 0.0;
        for (int i = 0; i "lt" xn; ++i)
          ss += x[i] * x[i];
        double normX = Math.Sqrt(ss);

        // if (normX == 0.0) continue;  // risky
        if (Math.Abs(normX) "lt" 1.0e-12) continue;

        double sign;
        if (x[0] "gte" 0.0) sign = -1.0;
        else sign = 1.0; // counter-intuitive

        double[] u = new double[xn];
        for (int i = 0; i "lt" xn; ++i)
          u[i] = x[i] / (x[0] - sign * normX); // check div 0
        u[0] = 1.0;

        // compute scaling factor tau = 2 / (u^T * u)
        double tau = -sign * (x[0] - sign * normX) / normX;

        // dimensions for sub-matrices
        int nRowsSubR = m - j; int nColsSubR = n - j;
        int nRowsSubQ = m; int nColsSubQ = m - j;

        double[] vr = new double[nColsSubR];
        for (int c = 0; c "lt" nColsSubR; ++c)
        {
          double acc = 0.0;
          for (int r = 0; r "lt" nRowsSubR; ++r)
            acc += u[r] * RR[j + r][j + c];
          vr[c] = acc;
        }

        double[] vq = new double[nRowsSubQ];
        for (int r = 0; r "lt" nRowsSubQ; ++r)
        {
          double acc = 0.0;
          for (int c = 0; c "lt" nColsSubQ; ++c)
            acc += u[c] * QQ[r][j + c];
          vq[r] = acc;
        }

        // update sub-R
        for (int r = 0; r "lt" nRowsSubR; ++r)
          for (int c = 0; c "lt" nColsSubR; ++c)
            RR[j + r][j + c] -= tau * u[r] * vr[c];

        // update sub-Q
        for (int r = 0; r "lt" nRowsSubQ; ++r)
          for (int c = 0; c "lt" nColsSubQ; ++c)
            QQ[r][j + c] -= tau * vq[r] * u[c];

      } // j

      // extract QQ RR into out params
      Q = MatMake(m, n);
      for (int i = 0; i "lt" m; ++i)
        for (int j = 0; j "lt" n; ++j)
          Q[i][j] = QQ[i][j];

      R = MatMake(n, n);
      for (int i = 0; i "lt" n; ++i)
        for (int j = 0; j "lt" n; ++j)
          R[i][j] = RR[i][j];

      return;
    } // MatDecompQR

    // ------------------------------------------------------

    public static double[][] MatInvUpperTri(double[][] U)
    {
      int n = U.Length;  // must be square matrix

      double[][] result = MatMake(n, n);
      for (int i = 0; i "lt" n; ++i)
        result[i][i] = 1.0;
      for (int k = 0; k "lt" n; ++k)
      {
        for (int j = 0; j "lt" n; ++j)
        {
          for (int i = 0; i "lt" k; ++i)
          {
            result[j][k] -= result[j][i] * U[i][k];
          }
          result[j][k] /= U[k][k];
        }
      }
      return result;
    }

    // ------------------------------------------------------

    private static double[][] MatMake(int nRows, int nCols)
    {
      double[][] result = new double[nRows][];
      for (int i = 0; i "lt" nRows; ++i)
        result[i] = new double[nCols];
      return result;
    }

    // ------------------------------------------------------

    private static double[][] MatTranspose(double[][] M)
    {
      int nRows = M.Length;
      int nCols = M[0].Length;
      double[][] result = MatMake(nCols, nRows);
      for (int i = 0; i "lt" nRows; ++i)
        for (int j = 0; j "lt" nCols; ++j)
          result[j][i] = M[i][j];
      return result;
    }

    // ------------------------------------------------------

    private static double[][] MatProduct(double[][] A,
      double[][] B)
    {
      int aRows = A.Length; int aCols = A[0].Length;
      int bRows = B.Length; int bCols = B[0].Length;
      if (aCols != bRows)
        throw new Exception("Non-conformable matrices");

      double[][] result = new double[aRows][];
      for (int i = 0; i "lt" aRows; ++i)
        result[i] = new double[bCols];

      for (int i = 0; i "lt" aRows; ++i) // each row of A
        for (int j = 0; j "lt" bCols; ++j) // each col of B
          for (int k = 0; k "lt" aCols; ++k)
            result[i][j] += A[i][k] * B[k][j];

      return result;
    }

  } // class QRHouseholder

  // ========================================================

Training data:

# synthetic_train_200.txt
#
-0.1660,  0.4406, -0.9998, -0.3953, -0.7065,  0.4840
 0.0776, -0.1616,  0.3704, -0.5911,  0.7562,  0.1568
-0.9452,  0.3409, -0.1654,  0.1174, -0.7192,  0.8054
 0.9365, -0.3732,  0.3846,  0.7528,  0.7892,  0.1345
-0.8299, -0.9219, -0.6603,  0.7563, -0.8033,  0.7955
 0.0663,  0.3838, -0.3690,  0.3730,  0.6693,  0.3206
-0.9634,  0.5003,  0.9777,  0.4963, -0.4391,  0.7377
-0.1042,  0.8172, -0.4128, -0.4244, -0.7399,  0.4801
-0.9613,  0.3577, -0.5767, -0.4689, -0.0169,  0.6861
-0.7065,  0.1786,  0.3995, -0.7953, -0.1719,  0.5569
 0.3888, -0.1716, -0.9001,  0.0718,  0.3276,  0.2500
 0.1731,  0.8068, -0.7251, -0.7214,  0.6148,  0.3297
-0.2046, -0.6693,  0.8550, -0.3045,  0.5016,  0.2129
 0.2473,  0.5019, -0.3022, -0.4601,  0.7918,  0.2613
-0.1438,  0.9297,  0.3269,  0.2434, -0.7705,  0.5171
 0.1568, -0.1837, -0.5259,  0.8068,  0.1474,  0.3307
-0.9943,  0.2343, -0.3467,  0.0541,  0.7719,  0.5581
 0.2467, -0.9684,  0.8589,  0.3818,  0.9946,  0.1092
-0.6553, -0.7257,  0.8652,  0.3936, -0.8680,  0.7018
 0.8460,  0.4230, -0.7515, -0.9602, -0.9476,  0.1996
-0.9434, -0.5076,  0.7201,  0.0777,  0.1056,  0.5664
 0.9392,  0.1221, -0.9627,  0.6013, -0.5341,  0.1533
 0.6142, -0.2243,  0.7271,  0.4942,  0.1125,  0.1661
 0.4260,  0.1194, -0.9749, -0.8561,  0.9346,  0.2230
 0.1362, -0.5934, -0.4953,  0.4877, -0.6091,  0.3810
 0.6937, -0.5203, -0.0125,  0.2399,  0.6580,  0.1460
-0.6864, -0.9628, -0.8600, -0.0273,  0.2127,  0.5387
 0.9772,  0.1595, -0.2397,  0.1019,  0.4907,  0.1611
 0.3385, -0.4702, -0.8673, -0.2598,  0.2594,  0.2270
-0.8669, -0.4794,  0.6095, -0.6131,  0.2789,  0.4700
 0.0493,  0.8496, -0.4734, -0.8681,  0.4701,  0.3516
 0.8639, -0.9721, -0.5313,  0.2336,  0.8980,  0.1412
 0.9004,  0.1133,  0.8312,  0.2831, -0.2200,  0.1782
 0.0991,  0.8524,  0.8375, -0.2102,  0.9265,  0.2150
-0.6521, -0.7473, -0.7298,  0.0113, -0.9570,  0.7422
 0.6190, -0.3105,  0.8802,  0.1640,  0.7577,  0.1056
 0.6895,  0.8108, -0.0802,  0.0927,  0.5972,  0.2214
 0.1982, -0.9689,  0.1870, -0.1326,  0.6147,  0.1310
-0.3695,  0.7858,  0.1557, -0.6320,  0.5759,  0.3773
-0.1596,  0.3581,  0.8372, -0.9992,  0.9535,  0.2071
-0.2468,  0.9476,  0.2094,  0.6577,  0.1494,  0.4132
 0.1737,  0.5000,  0.7166,  0.5102,  0.3961,  0.2611
 0.7290, -0.3546,  0.3416, -0.0983, -0.2358,  0.1332
-0.3652,  0.2438, -0.1395,  0.9476,  0.3556,  0.4170
-0.6029, -0.1466, -0.3133,  0.5953,  0.7600,  0.4334
-0.4596, -0.4953,  0.7098,  0.0554,  0.6043,  0.2775
 0.1450,  0.4663,  0.0380,  0.5418,  0.1377,  0.2931
-0.8636, -0.2442, -0.8407,  0.9656, -0.6368,  0.7429
 0.6237,  0.7499,  0.3768,  0.1390, -0.6781,  0.2185
-0.5499,  0.1850, -0.3755,  0.8326,  0.8193,  0.4399
-0.4858, -0.7782, -0.6141, -0.0008,  0.4572,  0.4197
 0.7033, -0.1683,  0.2334, -0.5327, -0.7961,  0.1776
 0.0317, -0.0457, -0.6947,  0.2436,  0.0880,  0.3345
 0.5031, -0.5559,  0.0387,  0.5706, -0.9553,  0.3107
-0.3513,  0.7458,  0.6894,  0.0769,  0.7332,  0.3170
 0.2205,  0.5992, -0.9309,  0.5405,  0.4635,  0.3532
-0.4806, -0.4859,  0.2646, -0.3094,  0.5932,  0.3202
 0.9809, -0.3995, -0.7140,  0.8026,  0.0831,  0.1600
 0.9495,  0.2732,  0.9878,  0.0921,  0.0529,  0.1289
-0.9476, -0.6792,  0.4913, -0.9392, -0.2669,  0.5966
 0.7247,  0.3854,  0.3819, -0.6227, -0.1162,  0.1550
-0.5922, -0.5045, -0.4757,  0.5003, -0.0860,  0.5863
-0.8861,  0.0170, -0.5761,  0.5972, -0.4053,  0.7301
 0.6877, -0.2380,  0.4997,  0.0223,  0.0819,  0.1404
 0.9189,  0.6079, -0.9354,  0.4188, -0.0700,  0.1907
-0.1428, -0.7820,  0.2676,  0.6059,  0.3936,  0.2790
 0.5324, -0.3151,  0.6917, -0.1425,  0.6480,  0.1071
-0.8432, -0.9633, -0.8666, -0.0828, -0.7733,  0.7784
-0.9444,  0.5097, -0.2103,  0.4939, -0.0952,  0.6787
-0.0520,  0.6063, -0.1952,  0.8094, -0.9259,  0.4836
 0.5477, -0.7487,  0.2370, -0.9793,  0.0773,  0.1241
 0.2450,  0.8116,  0.9799,  0.4222,  0.4636,  0.2355
 0.8186, -0.1983, -0.5003, -0.6531, -0.7611,  0.1511
-0.4714,  0.6382, -0.3788,  0.9648, -0.4667,  0.5950
 0.0673, -0.3711,  0.8215, -0.2669, -0.1328,  0.2677
-0.9381,  0.4338,  0.7820, -0.9454,  0.0441,  0.5518
-0.3480,  0.7190,  0.1170,  0.3805, -0.0943,  0.4724
-0.9813,  0.1535, -0.3771,  0.0345,  0.8328,  0.5438
-0.1471, -0.5052, -0.2574,  0.8637,  0.8737,  0.3042
-0.5454, -0.3712, -0.6505,  0.2142, -0.1728,  0.5783
 0.6327, -0.6297,  0.4038, -0.5193,  0.1484,  0.1153
-0.5424,  0.3282, -0.0055,  0.0380, -0.6506,  0.6613
 0.1414,  0.9935,  0.6337,  0.1887,  0.9520,  0.2540
-0.9351, -0.8128, -0.8693, -0.0965, -0.2491,  0.7353
 0.9507, -0.6640,  0.9456,  0.5349,  0.6485,  0.1059
-0.0462, -0.9737, -0.2940, -0.0159,  0.4602,  0.2606
-0.0627, -0.0852, -0.7247, -0.9782,  0.5166,  0.2977
 0.0478,  0.5098, -0.0723, -0.7504, -0.3750,  0.3335
 0.0090,  0.3477,  0.5403, -0.7393, -0.9542,  0.4415
-0.9748,  0.3449,  0.3736, -0.1015,  0.8296,  0.4358
 0.2887, -0.9895, -0.0311,  0.7186,  0.6608,  0.2057
 0.1570, -0.4518,  0.1211,  0.3435, -0.2951,  0.3244
 0.7117, -0.6099,  0.4946, -0.4208,  0.5476,  0.1096
-0.2929, -0.5726,  0.5346, -0.3827,  0.4665,  0.2465
 0.4889, -0.5572, -0.5718, -0.6021, -0.7150,  0.2163
-0.7782,  0.3491,  0.5996, -0.8389, -0.5366,  0.6516
-0.5847,  0.8347,  0.4226,  0.1078, -0.3910,  0.6134
 0.8469,  0.4121, -0.0439, -0.7476,  0.9521,  0.1571
-0.6803, -0.5948, -0.1376, -0.1916, -0.7065,  0.7156
 0.2878,  0.5086, -0.5785,  0.2019,  0.4979,  0.2980
 0.2764,  0.1943, -0.4090,  0.4632,  0.8906,  0.2960
-0.8877,  0.6705, -0.6155, -0.2098, -0.3998,  0.7107
-0.8398,  0.8093, -0.2597,  0.0614, -0.0118,  0.6502
-0.8476,  0.0158, -0.4769, -0.2859, -0.7839,  0.7715
 0.5751, -0.7868,  0.9714, -0.6457,  0.1448,  0.1175
 0.4802, -0.7001,  0.1022, -0.5668,  0.5184,  0.1090
 0.4458, -0.6469,  0.7239, -0.9604,  0.7205,  0.0779
 0.5175,  0.4339,  0.9747, -0.4438, -0.9924,  0.2879
 0.8678,  0.7158,  0.4577,  0.0334,  0.4139,  0.1678
 0.5406,  0.5012,  0.2264, -0.1963,  0.3946,  0.2088
-0.9938,  0.5498,  0.7928, -0.5214, -0.7585,  0.7687
 0.7661,  0.0863, -0.4266, -0.7233, -0.4197,  0.1466
 0.2277, -0.3517, -0.0853, -0.1118,  0.6563,  0.1767
 0.3499, -0.5570, -0.0655, -0.3705,  0.2537,  0.1632
 0.7547, -0.1046,  0.5689, -0.0861,  0.3125,  0.1257
 0.8186,  0.2110,  0.5335,  0.0094, -0.0039,  0.1391
 0.6858, -0.8644,  0.1465,  0.8855,  0.0357,  0.1845
-0.4967,  0.4015,  0.0805,  0.8977,  0.2487,  0.4663
 0.6760, -0.9841,  0.9787, -0.8446, -0.3557,  0.1509
-0.1203, -0.4885,  0.6054, -0.0443, -0.7313,  0.4854
 0.8557,  0.7919, -0.0169,  0.7134, -0.1628,  0.2002
 0.0115, -0.6209,  0.9300, -0.4116, -0.7931,  0.4052
-0.7114, -0.9718,  0.4319,  0.1290,  0.5892,  0.3661
 0.3915,  0.5557, -0.1870,  0.2955, -0.6404,  0.2954
-0.3564, -0.6548, -0.1827, -0.5172, -0.1862,  0.4622
 0.2392, -0.4959,  0.5857, -0.1341, -0.2850,  0.2470
-0.3394,  0.3947, -0.4627,  0.6166, -0.4094,  0.5325
 0.7107,  0.7768, -0.6312,  0.1707,  0.7964,  0.2757
-0.1078,  0.8437, -0.4420,  0.2177,  0.3649,  0.4028
-0.3139,  0.5595, -0.6505, -0.3161, -0.7108,  0.5546
 0.4335,  0.3986,  0.3770, -0.4932,  0.3847,  0.1810
-0.2562, -0.2894, -0.8847,  0.2633,  0.4146,  0.4036
 0.2272,  0.2966, -0.6601, -0.7011,  0.0284,  0.2778
-0.0743, -0.1421, -0.0054, -0.6770, -0.3151,  0.3597
-0.4762,  0.6891,  0.6007, -0.1467,  0.2140,  0.4266
-0.4061,  0.7193,  0.3432,  0.2669, -0.7505,  0.6147
-0.0588,  0.9731,  0.8966,  0.2902, -0.6966,  0.4955
-0.0627, -0.1439,  0.1985,  0.6999,  0.5022,  0.3077
 0.1587,  0.8494, -0.8705,  0.9827, -0.8940,  0.4263
-0.7850,  0.2473, -0.9040, -0.4308, -0.8779,  0.7199
 0.4070,  0.3369, -0.2428, -0.6236,  0.4940,  0.2215
-0.0242,  0.0513, -0.9430,  0.2885, -0.2987,  0.3947
-0.5416, -0.1322, -0.2351, -0.0604,  0.9590,  0.3683
 0.1055,  0.7783, -0.2901, -0.5090,  0.8220,  0.2984
-0.9129,  0.9015,  0.1128, -0.2473,  0.9901,  0.4776
-0.9378,  0.1424, -0.6391,  0.2619,  0.9618,  0.5368
 0.7498, -0.0963,  0.4169,  0.5549, -0.0103,  0.1614
-0.2612, -0.7156,  0.4538, -0.0460, -0.1022,  0.3717
 0.7720,  0.0552, -0.1818, -0.4622, -0.8560,  0.1685
-0.4177,  0.0070,  0.9319, -0.7812,  0.3461,  0.3052
-0.0001,  0.5542, -0.7128, -0.8336, -0.2016,  0.3803
 0.5356, -0.4194, -0.5662, -0.9666, -0.2027,  0.1776
-0.2378,  0.3187, -0.8582, -0.6948, -0.9668,  0.5474
-0.1947, -0.3579,  0.1158,  0.9869,  0.6690,  0.2992
 0.3992,  0.8365, -0.9205, -0.8593, -0.0520,  0.3154
-0.0209,  0.0793,  0.7905, -0.1067,  0.7541,  0.1864
-0.4928, -0.4524, -0.3433,  0.0951, -0.5597,  0.6261
-0.8118,  0.7404, -0.5263, -0.2280,  0.1431,  0.6349
 0.0516, -0.8480,  0.7483,  0.9023,  0.6250,  0.1959
-0.3212,  0.1093,  0.9488, -0.3766,  0.3376,  0.2735
-0.3481,  0.5490, -0.3484,  0.7797,  0.5034,  0.4379
-0.5785, -0.9170, -0.3563, -0.9258,  0.3877,  0.4121
 0.3407, -0.1391,  0.5356,  0.0720, -0.9203,  0.3458
-0.3287, -0.8954,  0.2102,  0.0241,  0.2349,  0.3247
-0.1353,  0.6954, -0.0919, -0.9692,  0.7461,  0.3338
 0.9036, -0.8982, -0.5299, -0.8733, -0.1567,  0.1187
 0.7277, -0.8368, -0.0538, -0.7489,  0.5458,  0.0830
 0.9049,  0.8878,  0.2279,  0.9470, -0.3103,  0.2194
 0.7957, -0.1308, -0.5284,  0.8817,  0.3684,  0.2172
 0.4647, -0.4931,  0.2010,  0.6292, -0.8918,  0.3371
-0.7390,  0.6849,  0.2367,  0.0626, -0.5034,  0.7039
-0.1567, -0.8711,  0.7940, -0.5932,  0.6525,  0.1710
 0.7635, -0.0265,  0.1969,  0.0545,  0.2496,  0.1445
 0.7675,  0.1354, -0.7698, -0.5460,  0.1920,  0.1728
-0.5211, -0.7372, -0.6763,  0.6897,  0.2044,  0.5217
 0.1913,  0.1980,  0.2314, -0.8816,  0.5006,  0.1998
 0.8964,  0.0694, -0.6149,  0.5059, -0.9854,  0.1825
 0.1767,  0.7104,  0.2093,  0.6452,  0.7590,  0.2832
-0.3580, -0.7541,  0.4426, -0.1193, -0.7465,  0.5657
-0.5996,  0.5766, -0.9758, -0.3933, -0.9572,  0.6800
 0.9950,  0.1641, -0.4132,  0.8579,  0.0142,  0.2003
-0.4717, -0.3894, -0.2567, -0.5111,  0.1691,  0.4266
 0.3917, -0.8561,  0.9422,  0.5061,  0.6123,  0.1212
-0.0366, -0.1087,  0.3449, -0.1025,  0.4086,  0.2475
 0.3633,  0.3943,  0.2372, -0.6980,  0.5216,  0.1925
-0.5325, -0.6466, -0.2178, -0.3589,  0.6310,  0.3568
 0.2271,  0.5200, -0.1447, -0.8011, -0.7699,  0.3128
 0.6415,  0.1993,  0.3777, -0.0178, -0.8237,  0.2181
-0.5298, -0.0768, -0.6028, -0.9490,  0.4588,  0.4356
 0.6870, -0.1431,  0.7294,  0.3141,  0.1621,  0.1632
-0.5985,  0.0591,  0.7889, -0.3900,  0.7419,  0.2945
 0.3661,  0.7984, -0.8486,  0.7572, -0.6183,  0.3449
 0.6995,  0.3342, -0.3113, -0.6972,  0.2707,  0.1712
 0.2565,  0.9126,  0.1798, -0.6043, -0.1413,  0.2893
-0.3265,  0.9839, -0.2395,  0.9854,  0.0376,  0.4770
 0.2690, -0.1722,  0.9818,  0.8599, -0.7015,  0.3954
-0.2102, -0.0768,  0.1219,  0.5607, -0.0256,  0.3949
 0.8216, -0.9555,  0.6422, -0.6231,  0.3715,  0.0801
-0.2896,  0.9484, -0.7545, -0.6249,  0.7789,  0.4370
-0.9985, -0.5448, -0.7092, -0.5931,  0.7926,  0.5402

Test data:

# synthetic_test_40.txt
#
 0.7462,  0.4006, -0.0590,  0.6543, -0.0083,  0.1935
 0.8495, -0.2260, -0.0142, -0.4911,  0.7699,  0.1078
-0.2335, -0.4049,  0.4352, -0.6183, -0.7636,  0.5088
 0.1810, -0.5142,  0.2465,  0.2767, -0.3449,  0.3136
-0.8650,  0.7611, -0.0801,  0.5277, -0.4922,  0.7140
-0.2358, -0.7466, -0.5115, -0.8413, -0.3943,  0.4533
 0.4834,  0.2300,  0.3448, -0.9832,  0.3568,  0.1360
-0.6502, -0.6300,  0.6885,  0.9652,  0.8275,  0.3046
-0.3053,  0.5604,  0.0929,  0.6329, -0.0325,  0.4756
-0.7995,  0.0740, -0.2680,  0.2086,  0.9176,  0.4565
-0.2144, -0.2141,  0.5813,  0.2902, -0.2122,  0.4119
-0.7278, -0.0987, -0.3312, -0.5641,  0.8515,  0.4438
 0.3793,  0.1976,  0.4933,  0.0839,  0.4011,  0.1905
-0.8568,  0.9573, -0.5272,  0.3212, -0.8207,  0.7415
-0.5785,  0.0056, -0.7901, -0.2223,  0.0760,  0.5551
 0.0735, -0.2188,  0.3925,  0.3570,  0.3746,  0.2191
 0.1230, -0.2838,  0.2262,  0.8715,  0.1938,  0.2878
 0.4792, -0.9248,  0.5295,  0.0366, -0.9894,  0.3149
-0.4456,  0.0697,  0.5359, -0.8938,  0.0981,  0.3879
 0.8629, -0.8505, -0.4464,  0.8385,  0.5300,  0.1769
 0.1995,  0.6659,  0.7921,  0.9454,  0.9970,  0.2330
-0.0249, -0.3066, -0.2927, -0.4923,  0.8220,  0.2437
 0.4513, -0.9481, -0.0770, -0.4374, -0.9421,  0.2879
-0.3405,  0.5931, -0.3507, -0.3842,  0.8562,  0.3987
 0.9538,  0.0471,  0.9039,  0.7760,  0.0361,  0.1706
-0.0887,  0.2104,  0.9808,  0.5478, -0.3314,  0.4128
-0.8220, -0.6302,  0.0537, -0.1658,  0.6013,  0.4306
-0.4123, -0.2880,  0.9074, -0.0461, -0.4435,  0.5144
 0.0060,  0.2867, -0.7775,  0.5161,  0.7039,  0.3599
-0.7968, -0.5484,  0.9426, -0.4308,  0.8148,  0.2979
 0.7811,  0.8450, -0.6877,  0.7594,  0.2640,  0.2362
-0.6802, -0.1113, -0.8325, -0.6694, -0.6056,  0.6544
 0.3821,  0.1476,  0.7466, -0.5107,  0.2592,  0.1648
 0.7265,  0.9683, -0.9803, -0.4943, -0.5523,  0.2454
-0.9049, -0.9797, -0.0196, -0.9090, -0.4433,  0.6447
-0.4607,  0.1811, -0.2389,  0.4050, -0.0078,  0.5229
 0.2664, -0.2932, -0.4259, -0.7336,  0.8742,  0.1834
-0.4507,  0.1029, -0.6294, -0.1158, -0.6294,  0.6081
 0.8948, -0.0124,  0.9278,  0.2899, -0.0314,  0.1534
-0.1323, -0.8813, -0.0146, -0.0697,  0.6135,  0.2386
This entry was posted in Machine Learning. Bookmark the permalink.

Leave a Reply
